Sedona EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Diagnosis
>>
System Block Diagram
System Block Diagram

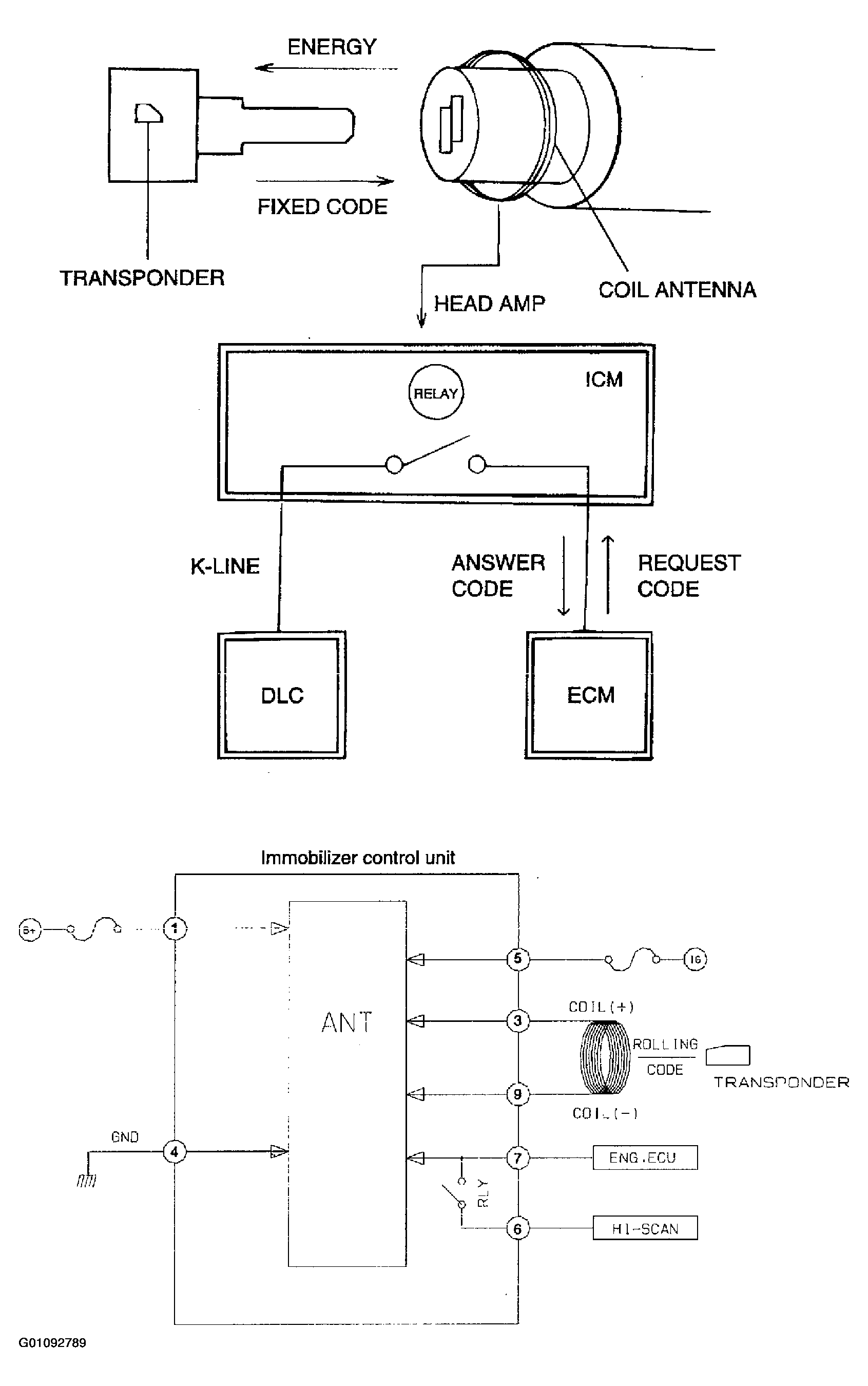

Fig 1: Identifying System Block Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
