Strut Assembly: Installation

  1. Place the fork bracket of the strut toward the inside of the vehicle, then install the strut assembly to the wheel house.

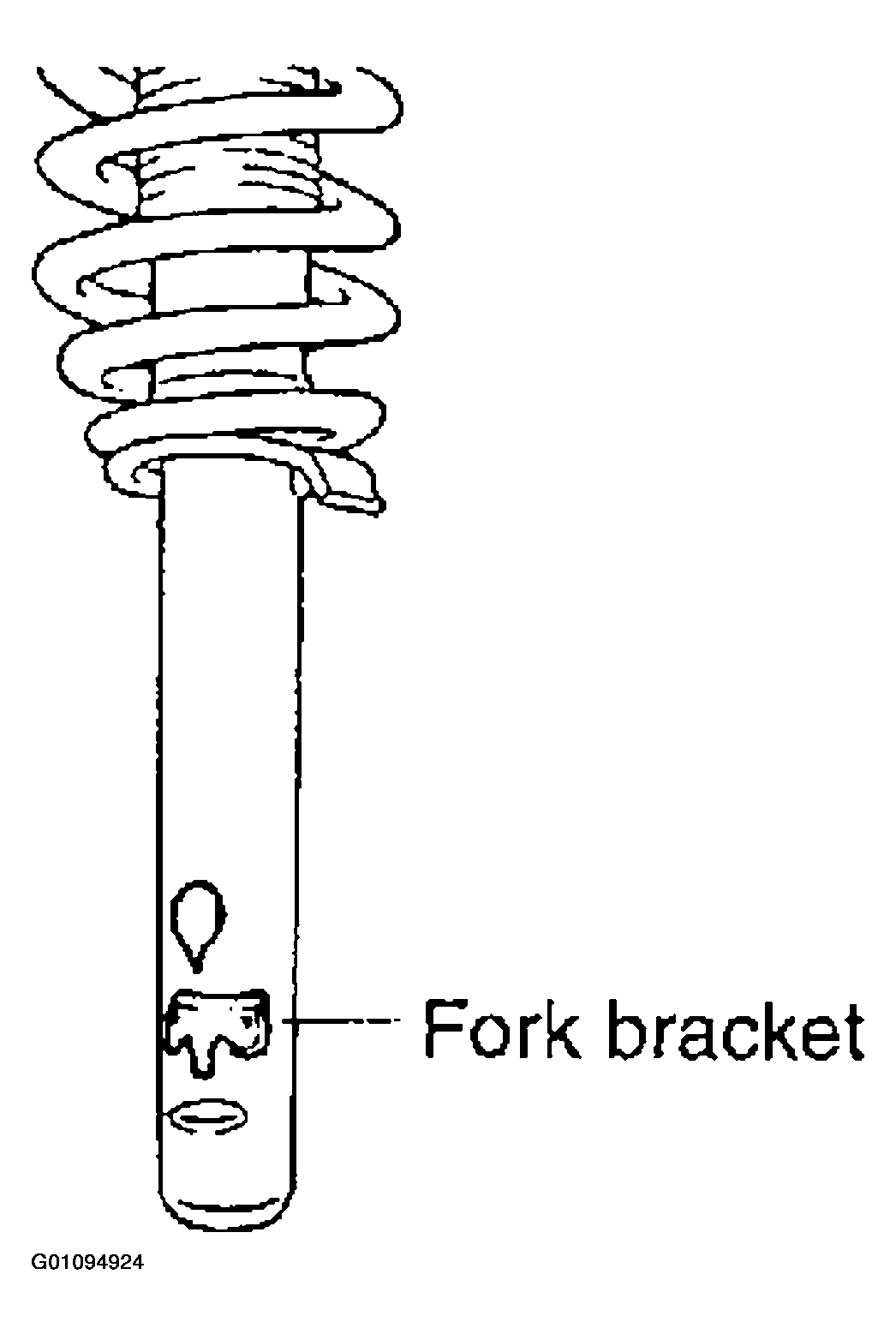

    Fig 1: Installing Strut Assembly To Wheel House
    G01094924Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the fork to the strut assembly.

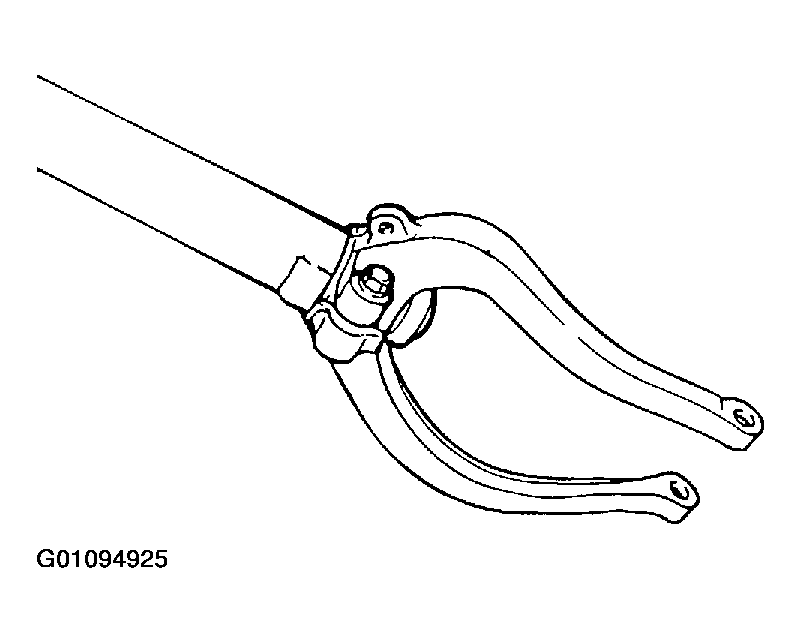

    Fig 2: Installing Fork To Strut Assembly
    G01094925Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the brake hose.
  4. Install the wheel and tire.
