Dimmer And Passing Switch (Connector "1")

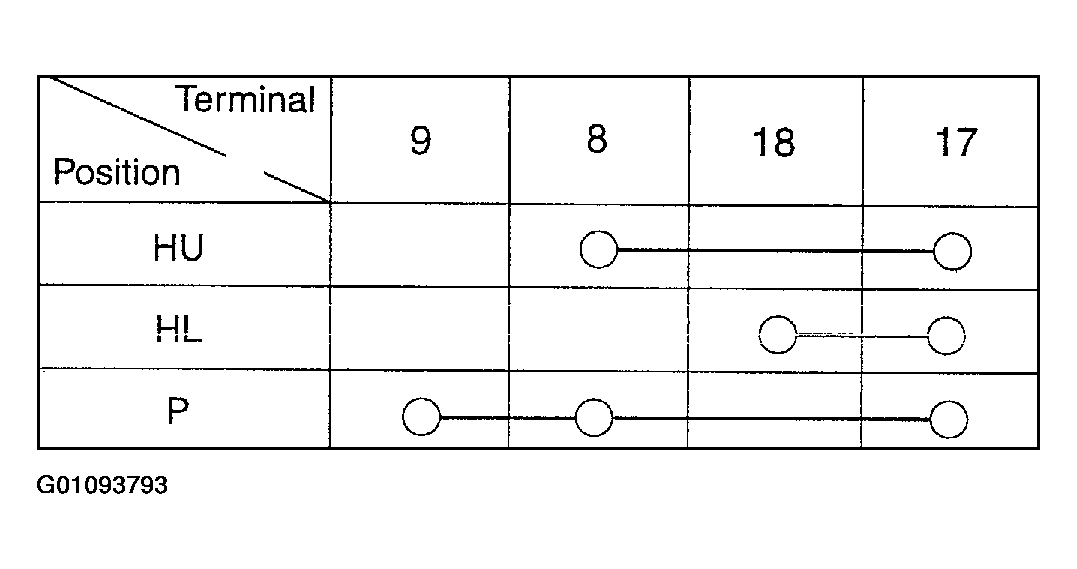

Fig 1: Checking Dimmer And Passing Switch (Connector "1") Continuity
G01093793Courtesy of KIA MOTORS AMERICA, INC.

HU: Head lamp high beam

HL: Head lamp low beam

P: Head lamp passing switch
