Oil Seal (Differential)

  1. Using SST (OK201 170 AA1/K94U-0001-Q)  and hammer, tap new oil seal in evenly until SST (OK201 170 AA1/K94U-0001-Q)  contacts transaxle case.
  2. Coat lip of oil seal with transaxle oil.

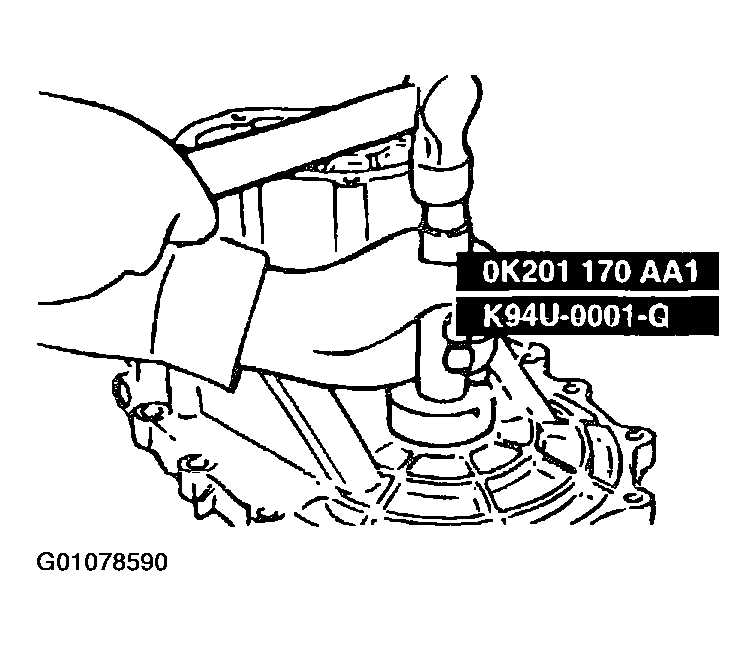

    Fig 1: Installing Oil Seal
    G01078590Courtesy of KIA MOTORS AMERICA, INC.
