Home >> Kia >> 2001 >> Optima SE, 2.4 6, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Manual Transaxle System >> Shift Fork & Control Shaft Assembly >> Components

Shift Fork & Control Shaft Assembly: Components

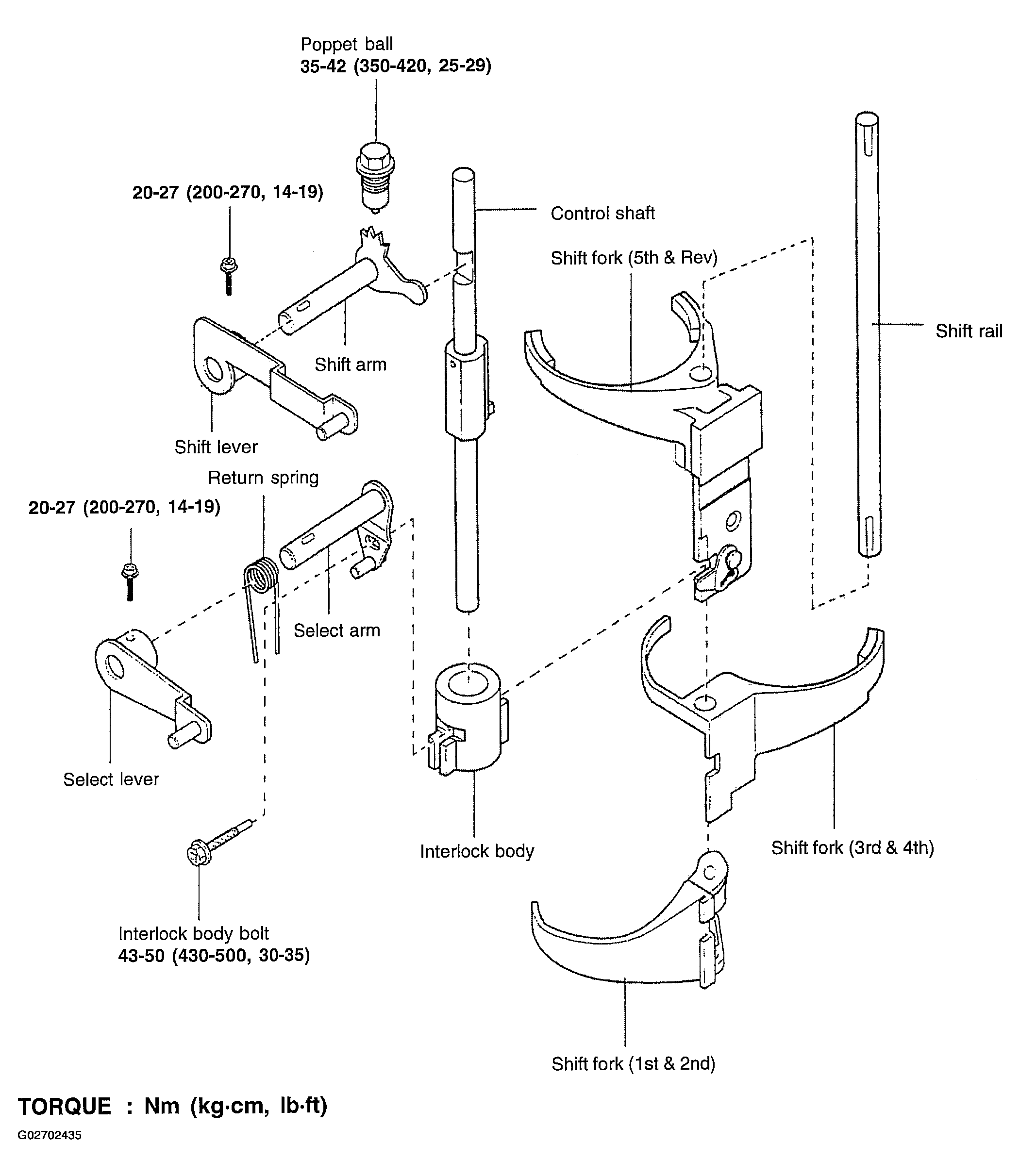

Fig 1: Identifying Shift Fork & Control Shaft Assembly Components

G02702435
