Home >> Kia >> 2001 >> Optima SE, 2.4 6, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Manual Transaxle System >> Input Shaft >> Disassembly

Input Shaft: Disassembly

  1. Remove the snap ring and the ball bearing using the special tool (09432-21300).

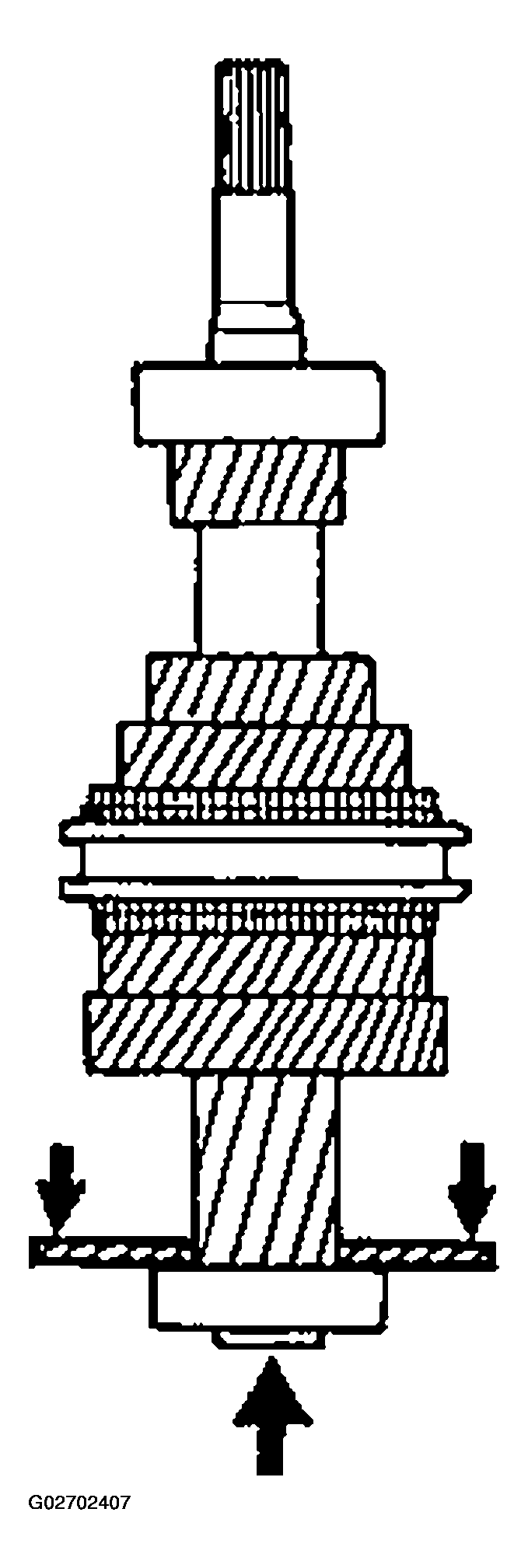

    Fig 1: Positioning Input Shaft To Remove Snap Ring
    G02702407
  2. Remove the stopper snap ring, snap ring, 5th and 4th speed gear, needle roller bearing, 4th speed gear sleeve, synchronizer ring (3rd & 4th), synchronizer spring (1st, 2nd, 3rd, 4th), synchronizer sleeve (3rd & 4th), 3rd speed gear and needle roller bearing.

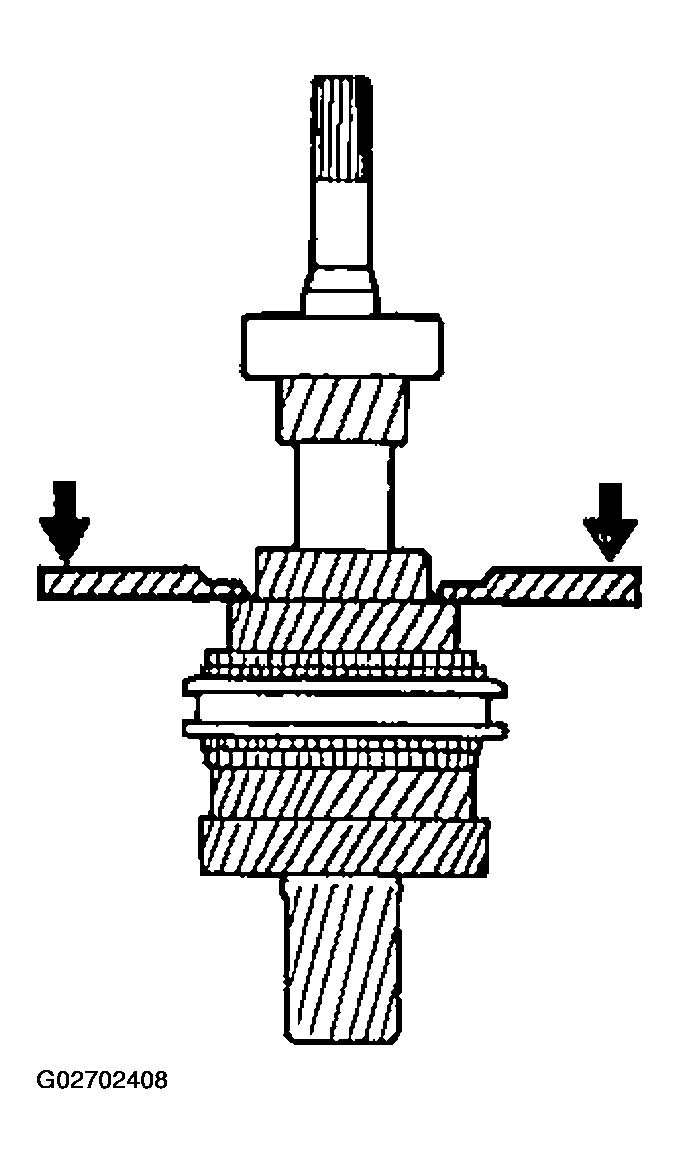

    Fig 2: Removing Input Shaft Components
    G02702408
