Torque Specifications - Charging System

Courtesy of CHRYSLER GROUP, LLC

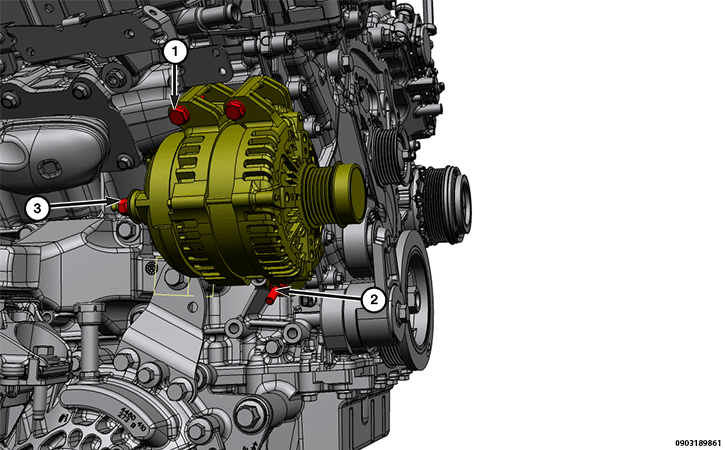

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Generator to Engine	55 N. m (41.Ft. Lbs.)	-
2	Generator Bolts	25 N.m (18 Ft. Lbs.)	-
3	Battery Positive B+	18 N. m (13Ft. Lbs.)	-
