Charging System: Notes
DESCRIPTION Vehicles that are equipped with an ADAS system will come with an IBS-2 on the auxiliary battery negative cable.

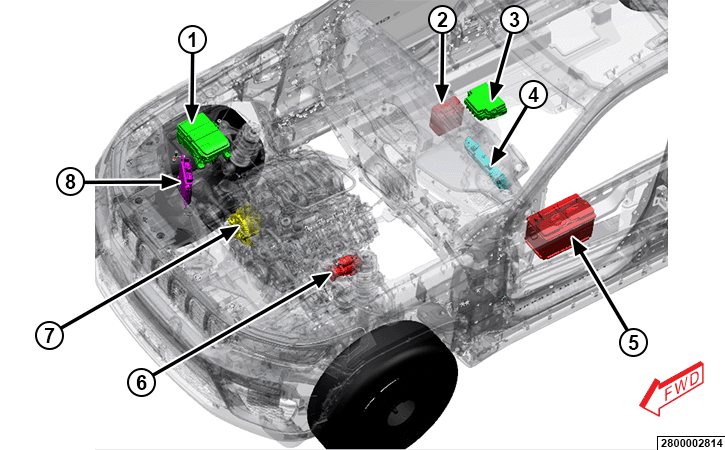

| 1 - Power Distribution Center (PDC) |
| 6 - Starter Motor |
| 2 - Auxiliary Battery |
| 7 - Alternator |
| 3 - Center Power Distribution Center (PDC) |
| 8 - Powertrain Control Module (PCM) |
| 4 - Instrument Panel Cluster (IPC) |
| Not Shown - Body Control Module (BCM) |
| 5 - Main Battery |
| Not Shown - Intelligent Battery Sensor (IBS) |
