Torque Specifications - Starting / Charging Systems

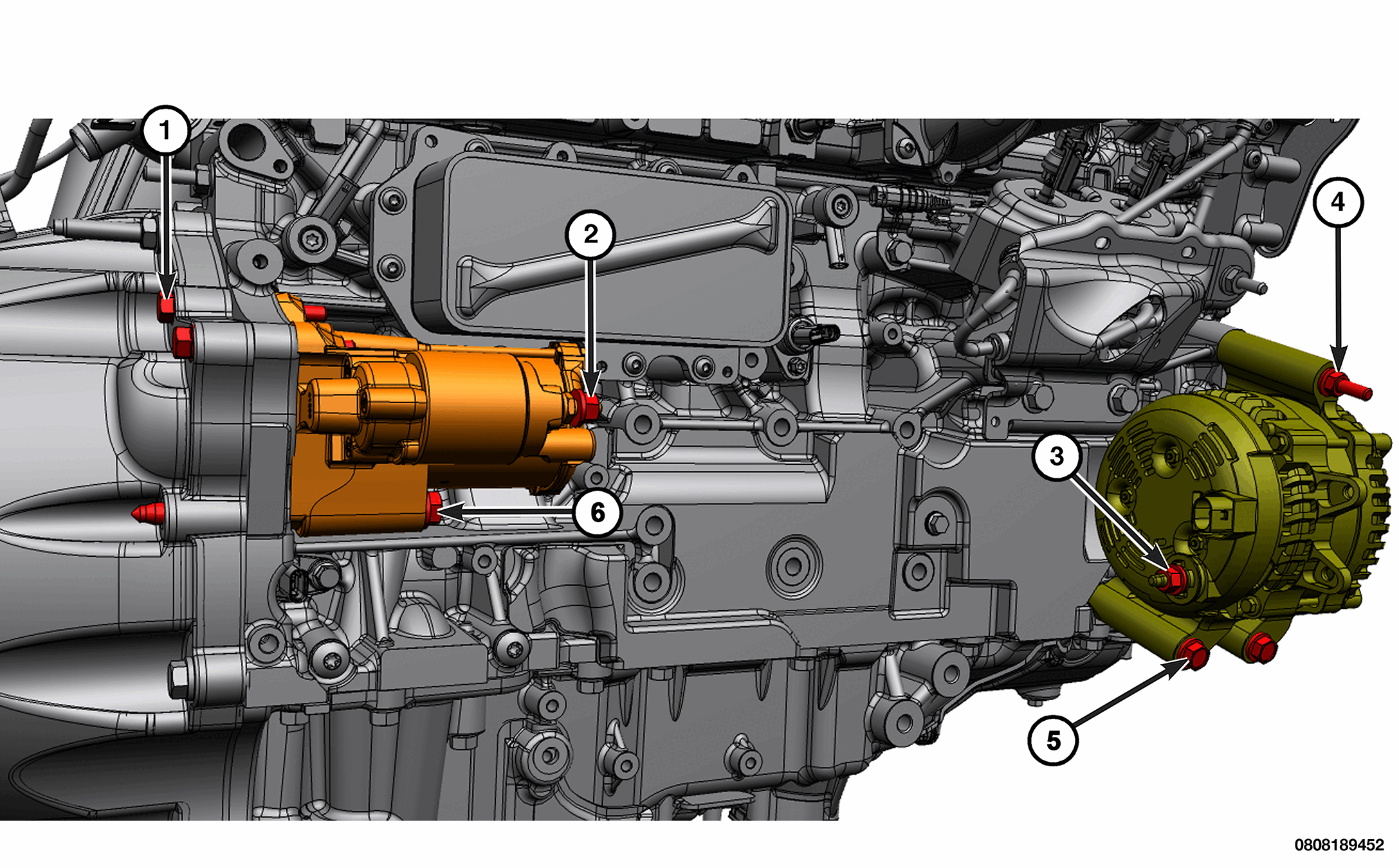

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Upper Starter Bolt to Transmission | 48 N. m (35 Ft. Lbs.) | - |
| 2 | Starter B(+) Nut | 11 N. m (8 Ft. Lbs.) | - |
| 3 | Generator B(+) Nut | 18 N. m (13 Ft. Lbs.) | - |
| 4 | Generator Upper Bolt | 25 N. m (18 Ft. Lbs.) | - |
| 5 | Generator Lower Bolt | 55 N. m (41 Ft. Lbs. | - |
| 6 | Lower Starter Bolt to Transmission | 26 N. m (19 Ft. Lbs.) | - |
| - | Wire Harness Support Bracket Nut | 25 N. m (18 Ft. Lbs.) | - |
