Battery System: Notes
DESCRIPTION
Non-ADAS EQUIPPED VEHICLES
| 1 - Body Control Module (BCM) |
| 3 - Intelligent Battery Sensor (IBS) |
| 4 - Battery |
| 5 - Instrument Panel Cluster (IPC) |

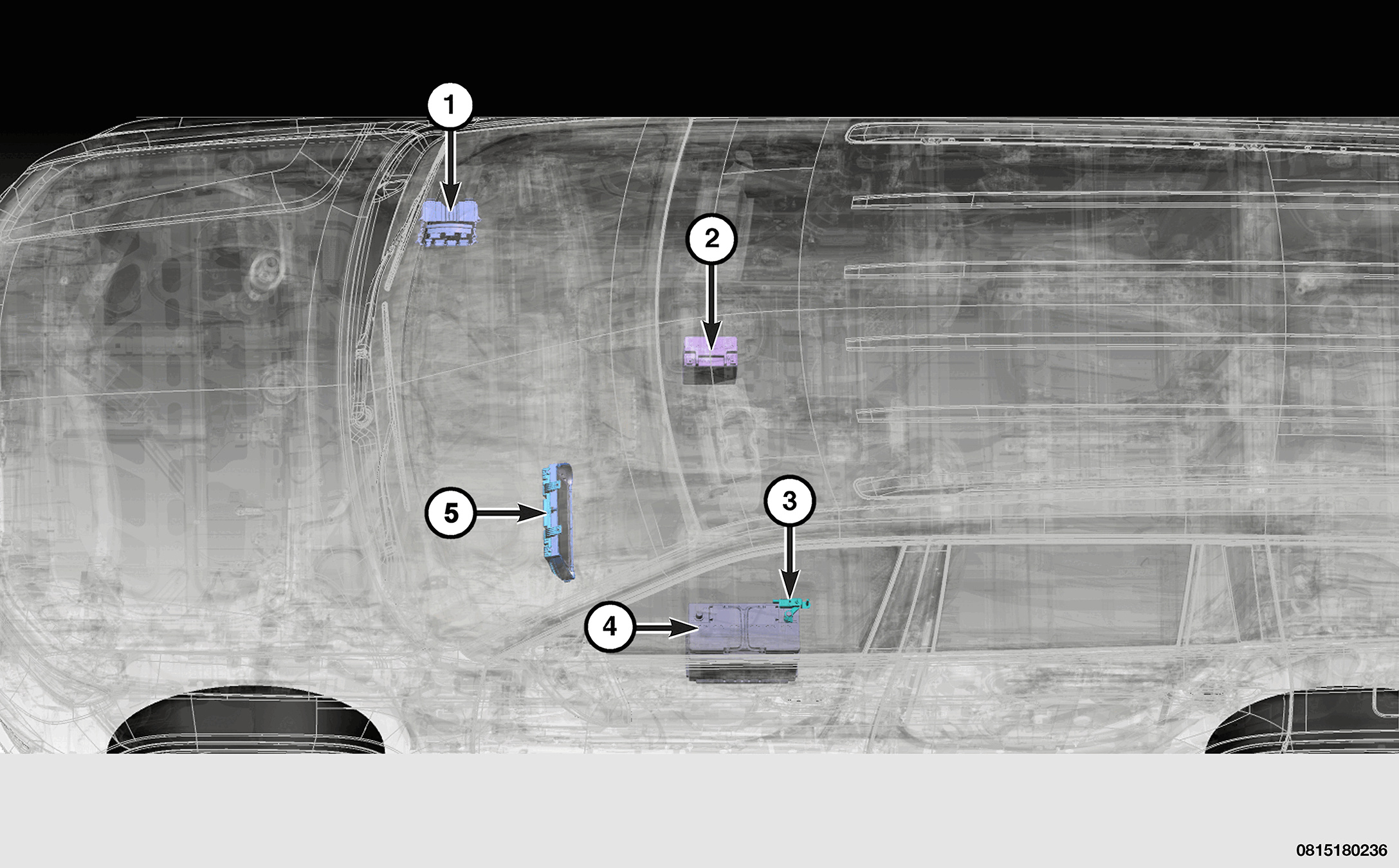

VEHICLES EQUIPPED WITH ADAS SYSTEM The batteries are connected through the Dual Battery Switch Module on vehicles that are equipped with the ADAS systems. These components are covered in more detail in the starting system.
| 1 - Body Control Module (BCM) |
| 4 - Main Battery |
| 2 - Auxiliary Battery |
| 5 - Instrument Panel Cluster (IPC) |
| 3 - Intelligent Battery Sensor (IBS) |
