Torque Specifications - 12 Volt Battery System

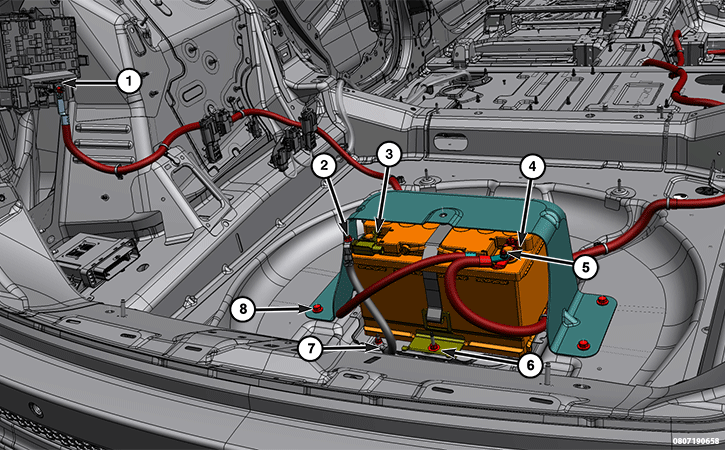

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Battery Positive B(+) at Power Distribution Center (PDC) M8 Nut | 15 N. m (11 Ft. Lbs.) | - |
| 2 | 12 Volt Negative Battery Cable to Intelligent Battery Sensor (IBS) | 10 N. m (7 Ft. Lbs.) | - |
| 3 | Intelligent Battery Sensor (IBS) to the Battery Negative Post | 8 N. m (71 In. Lbs.) | - |
| 4 | Battery Positive Cable Pinch Bolt (M5) | 7 N. m (62 In. Lbs.) | - |
| 5 | Battery Positive Cable Nut (M6) | 8 N. m (71 In. Lbs.) | - |
| 6 | Battery Hold Down Bolt | 9 N. m (80 In. Lbs.) | - |
| 7 | 12 Volt Battery Negative Battery Cable to Floor | 9 N. m (80 In. Lbs.) | - |
| 8 | Spare Tire Bracket to Floor | 17 N. m (13 Ft. Lbs.) | - |

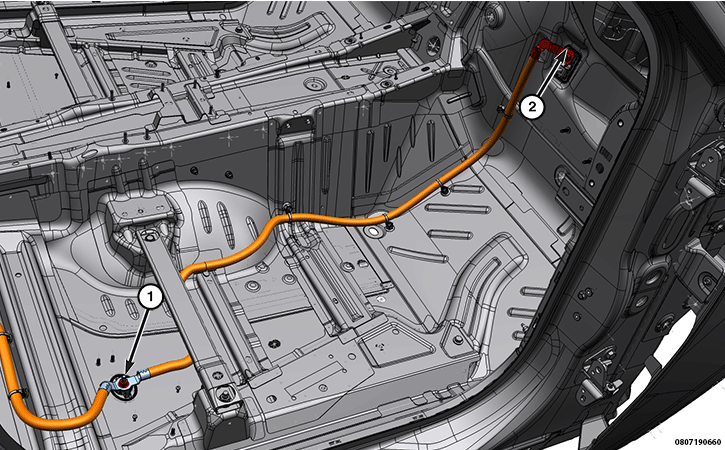

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Low Voltage Battery Cable to Isolator | 17 N. m (13 Ft. Lbs.) | - |
| 2 | Battery Positive B(+) at Bulkhead Captured Nut | 15 N. m (11 Ft. Lbs.) | - |
| - | Battery Positive B(+) at Bulkhead Isolator Nut | 6 N. m (53 In. Lbs.) | - |
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Negative Jump Start Post to Core Support | 11 N. m (8 Ft. Lbs.) | - |
| 2 | Battery Positive B(+) at Power Distribution Center (PDC) M8 Nut | 15 N. m (11 Ft. Lbs.) | - |
| 3 | Battery Positive B(+) at Power Distribution Center (PDC) M6 Nut | 8 N. m (71 In. Lbs.) | - |
| - | Battery Negative Cable to Engine Block | 41 N. m (30 Ft. Lbs.) | - |
