Valve Timing

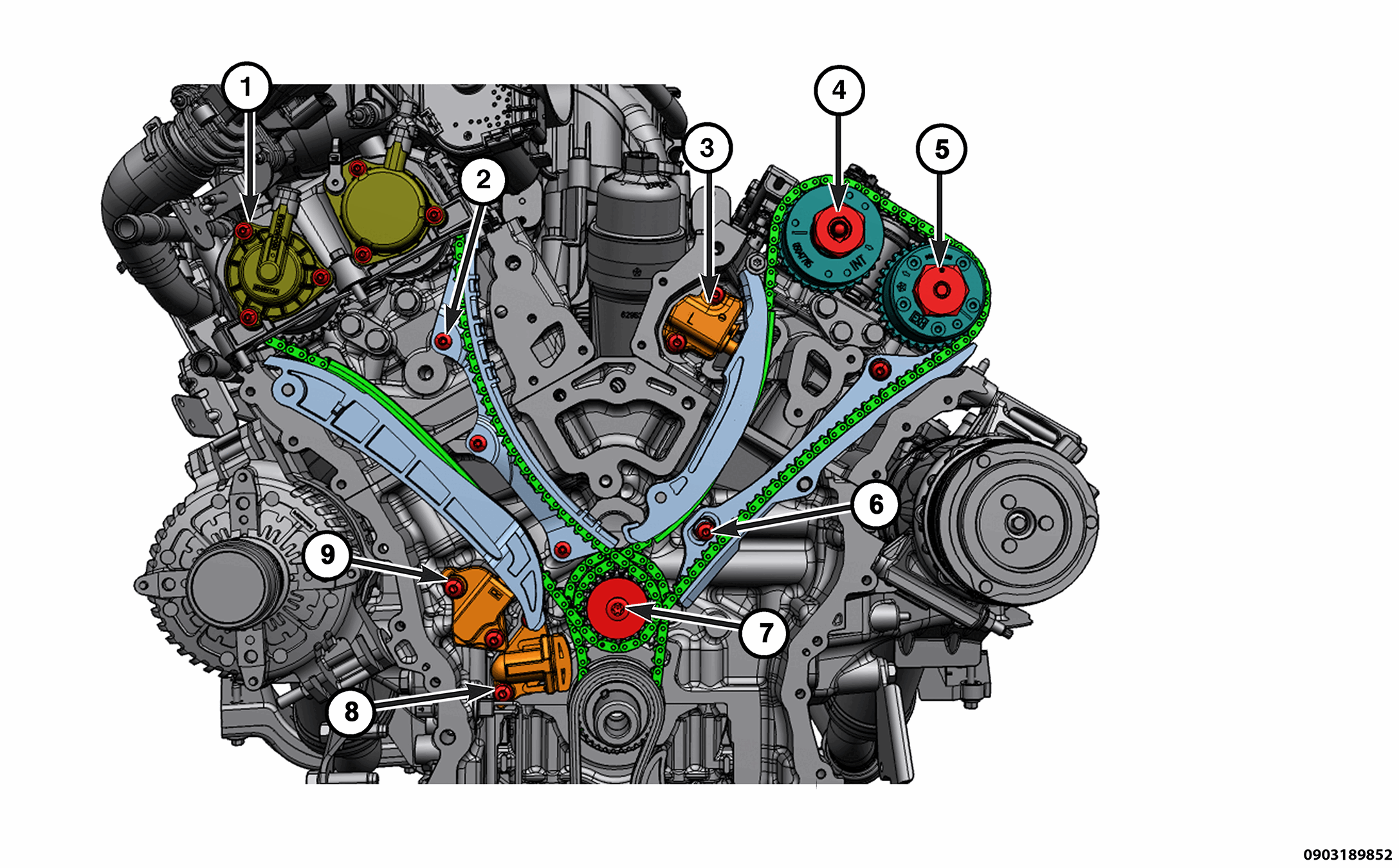

TORQUE SPECIFICATIONS - VALVE TIMING
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Variable Valve Timing Solenoids | 10 N. m (7 Ft. Lbs.) | - |
| 2 | Camshaft Chain LH Guide (Secondary) Bolt | 12 N.m (9 Ft. Lbs.) | - |
| 3 | Camshaft Chain RH Tensioner (Secondary) Bolt | 12 N.m (9 Ft. Lbs.) | - |
| 4 | Oil Control Valve/Cam Phaser Bolt - Intake | 30 N.m (22 Ft. Lbs.) + 45° Turn | - |
| 5 | Oil Control Valve/Cam Phaser Bolt - Exhaust | 160 N.m (118 Ft. Lbs.) | - |
| 6 | Camshaft Chain RH Guide (Secondary) Bolt | 12 N.m (9 Ft. Lbs.) | - |
