Torque Specifications: Lubrication

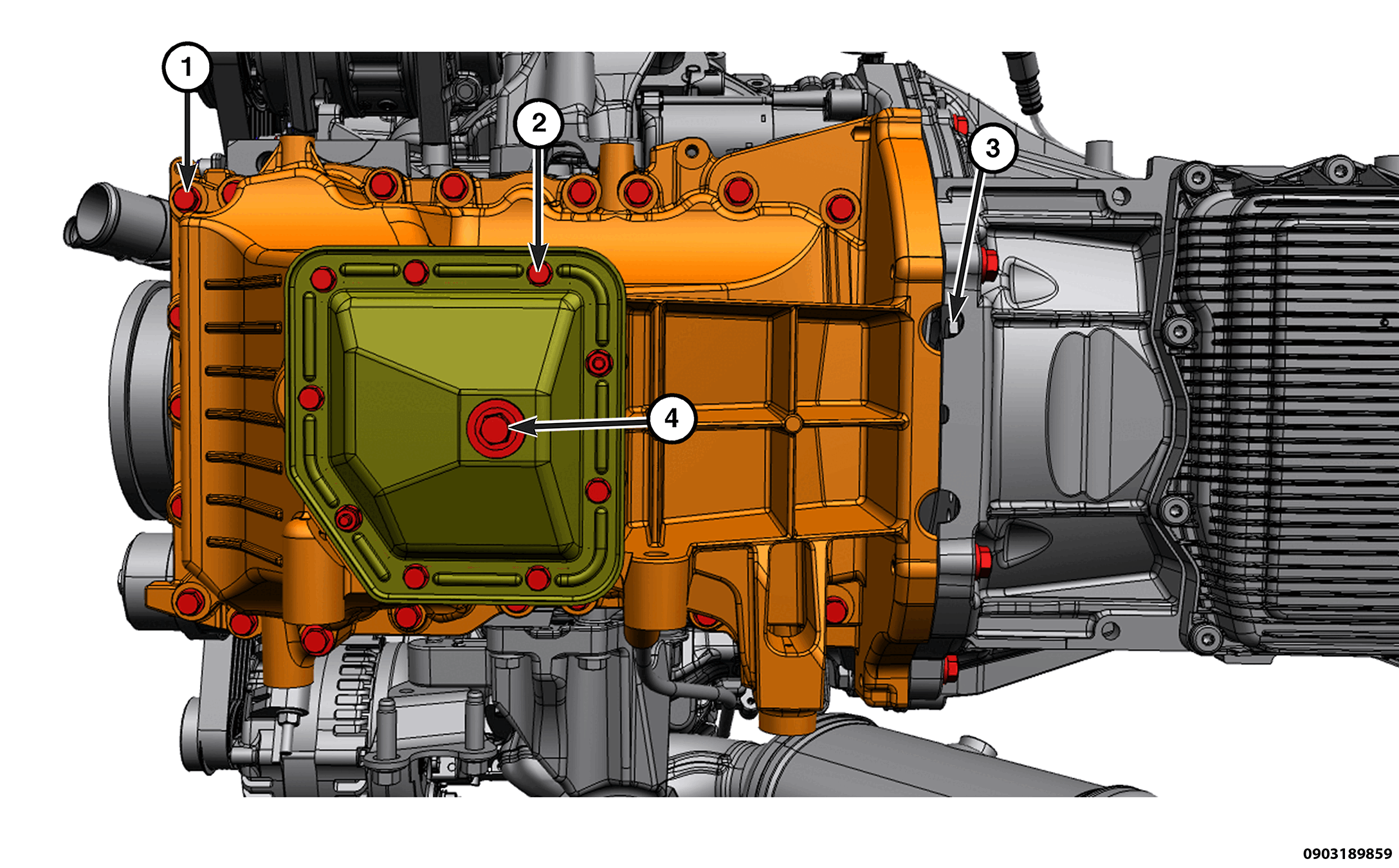

TORQUE SPECIFICATIONS - LUBRICATION (1 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Upper Oil Pan to Engine Block M8 Bolts | 23 N.m (17 Ft. Lbs.) | - |
| 2 | Lower Oil Pan to Upper Oil Pan - M6 Bolts | 11 N.m (8 Ft. Lbs.) | - |
| 4 | Oil Pan Drain Plug | 27 N.m (20 Ft. Lbs.) | - |
| Oil Level Indicator to Intake Manifold Bracket Bolt | 10 N.m (89 In. Lbs.) | - | |
| Upper Oil Pan to Rear Seal Retainer M6 Bolts | 10 N.m (89 In. Lbs.) | - |

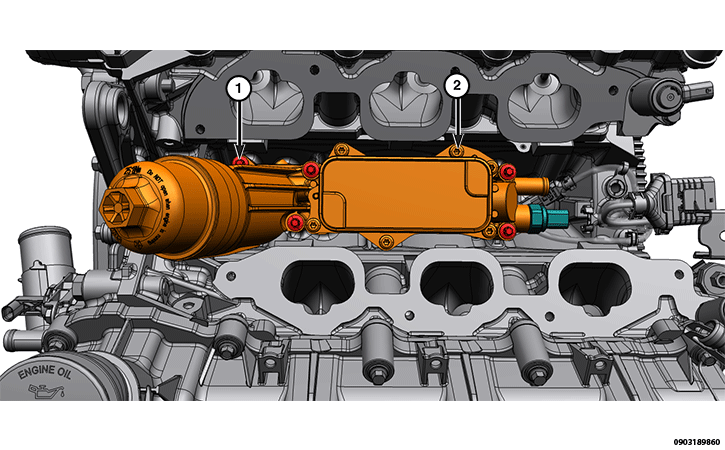

TORQUE SPECIFICATIONS - LUBRICATION (2 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Oil Filter Housing/Oil Cooler to Engine Block M6 Bolts | 12 N.m (106 In. Lbs.) | - |
| 2 | Oil Cooler to Oil Filter Housing Screws | 12 N.m (106 In. Lbs.) | - |
| - | Oil Filter Housing Cap | 25 N.m (18 Ft. Lbs.) | - |

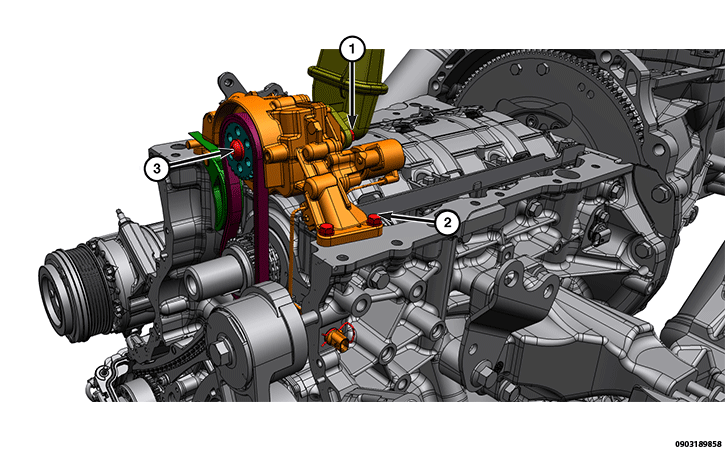

TORQUE SPECIFICATIONS - LUBRICATION (3 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Oil Pump Pick Up Tube to Oil Pump M6 Bolt | 12 N.m (106 In. Lbs.) | - |
| 2 | Oil Pump to Engine Block M6 Bolts | 12 N.m (106 In. Lbs.) | - |
| 3 | Oil Pump Sprocket M8 Bolt | 26 N.m (18 Ft. Lbs.) | - |
