Intake Air
TORQUE SPECIFICATIONS - INTAKE AIR
| DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|
| Air Cleaner Body Bolts | 7 N.m (62 In. Lbs.) | - |
| Air Cleaner Cover Screws | 4 N.m (35 In. Lbs.) | - |
| Air Cleaner Resonator Clamps | 4 N.m (35 In. Lbs.) | - |
| Air Cleaner Resonator to Support Bracket Nut | 7 N.m (62 In. Lbs.) | - |
| Engine Cover Bolts | 5 N.m (44 In. Lbs.) | - |
| Engine Cover Support Bracket Bolts to Cylinder Head Cover | 9 N.m (80 In. Lbs.) | - |
| Intake Air Tube Bolts | 7 N.m (62 In. Lbs.) | - |

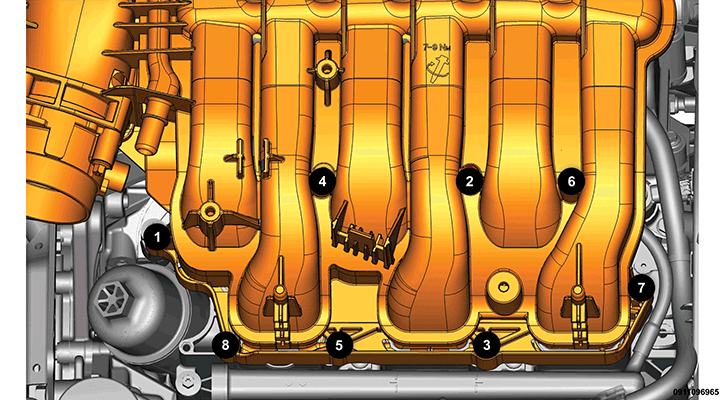

| Intake Manifold (Upper) M6 Bolts | 10 N.m (89 In. Lbs.) | Tightening Sequence |

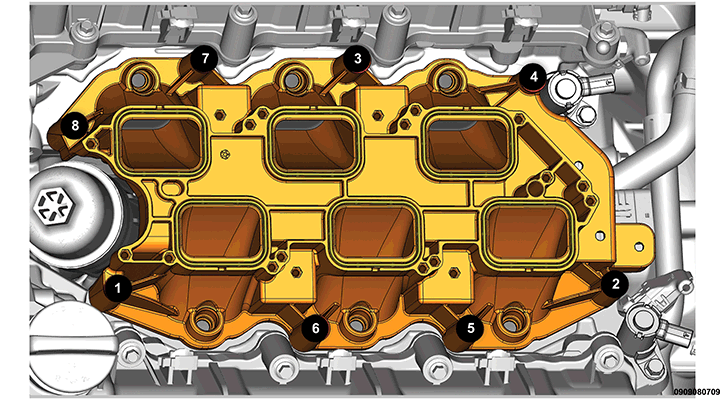

| Intake Manifold (Lower) M6 Bolts | 9 N.m (80 In. Lbs.) | Tightening Sequence |
| Intake Manifold Support Bracket Upper Bolts | 8 N.m (71 In. Lbs.) | - |
| Intake Manifold Support Bracket Lower Bolt | 26 N.m (19 Ft. Lbs.) | - |
| Throttle Body Support Bracket Nut | 8 N.m (71 In. Lbs.) | - |
| Throttle Body Support Bracket Bolt | 12 N.m (9 Ft. Lbs.) | - |
