Fuel System

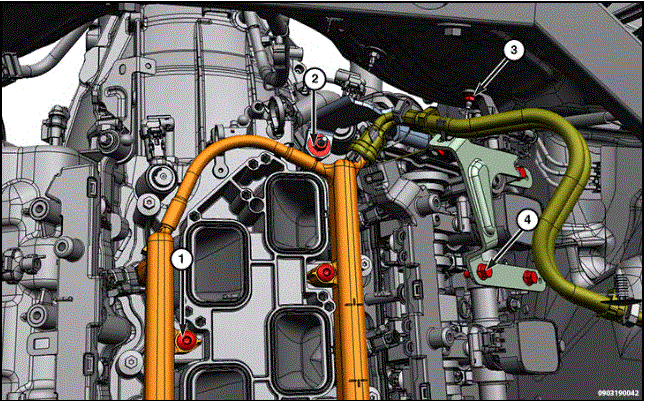

TORQUE SPECIFICATIONS - FUEL SYSTEM (1 OF 4)
| DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|
| Fuel Bundle Bracket To Valve Cover | 9 N.m (80 In. Lbs.) | - |
| Fuel Bundle Shield To Lower Intake | 9 N.m (80 In. Lbs.) | - |
| Fuel Line Bracket to Bulkhead | 9 N.m (80 In. Lbs.) | - |
| Fuel Line Support Bracket Bolts | 9 N.m (80 In. Lbs.) | - |
| Fuel Rail to Lower Intake | 7 N.m (62 In. Lbs.) | - |

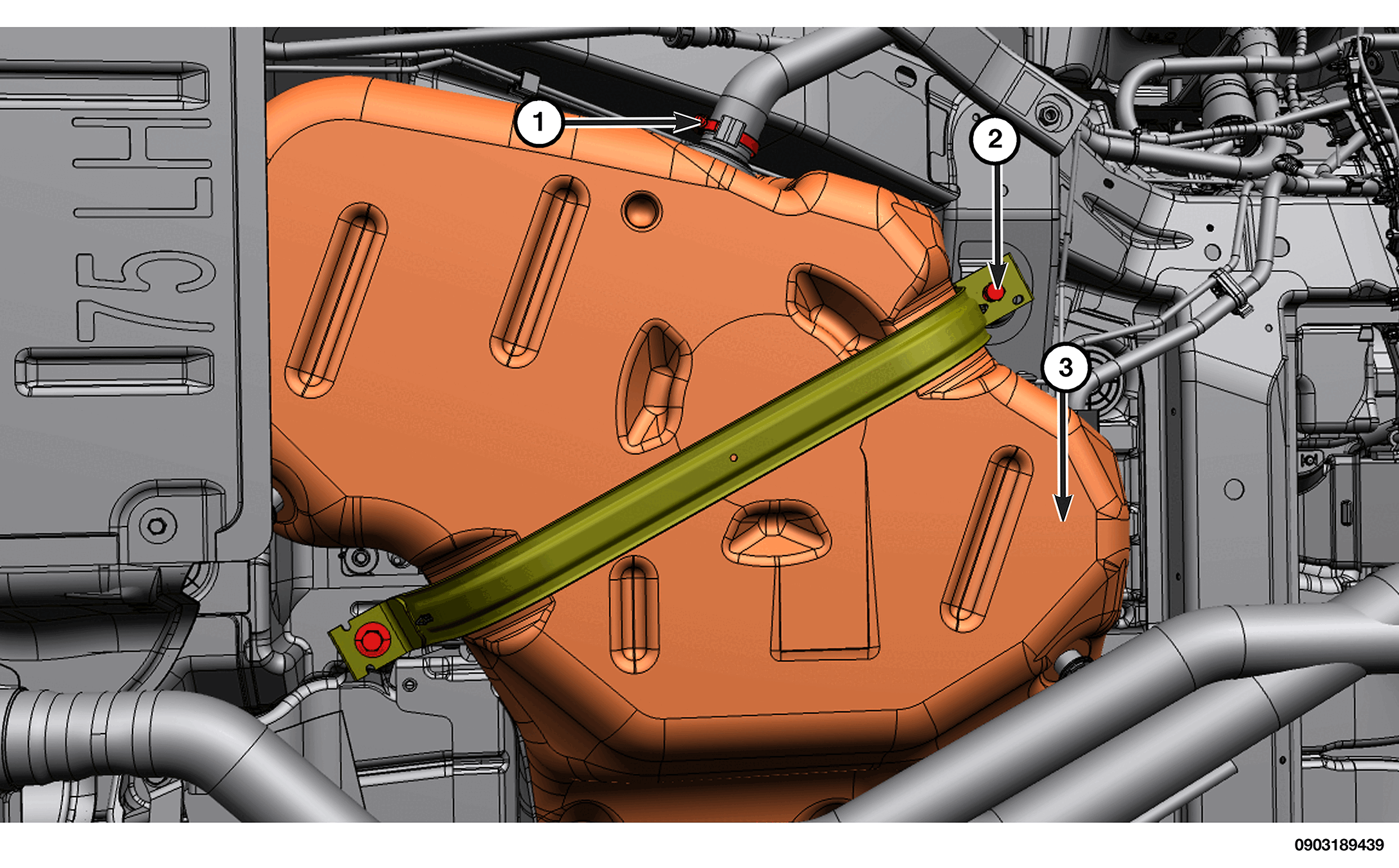

TORQUE SPECIFICATIONS - FUEL SYSTEM (2 OF 4)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Fuel Filler Tube Clamp | 3 N. m (30 In. Lbs.) | - |
| 2 | Fuel Tank Mounting Straps | 55 N. m (41 Ft. Lbs.) | - |

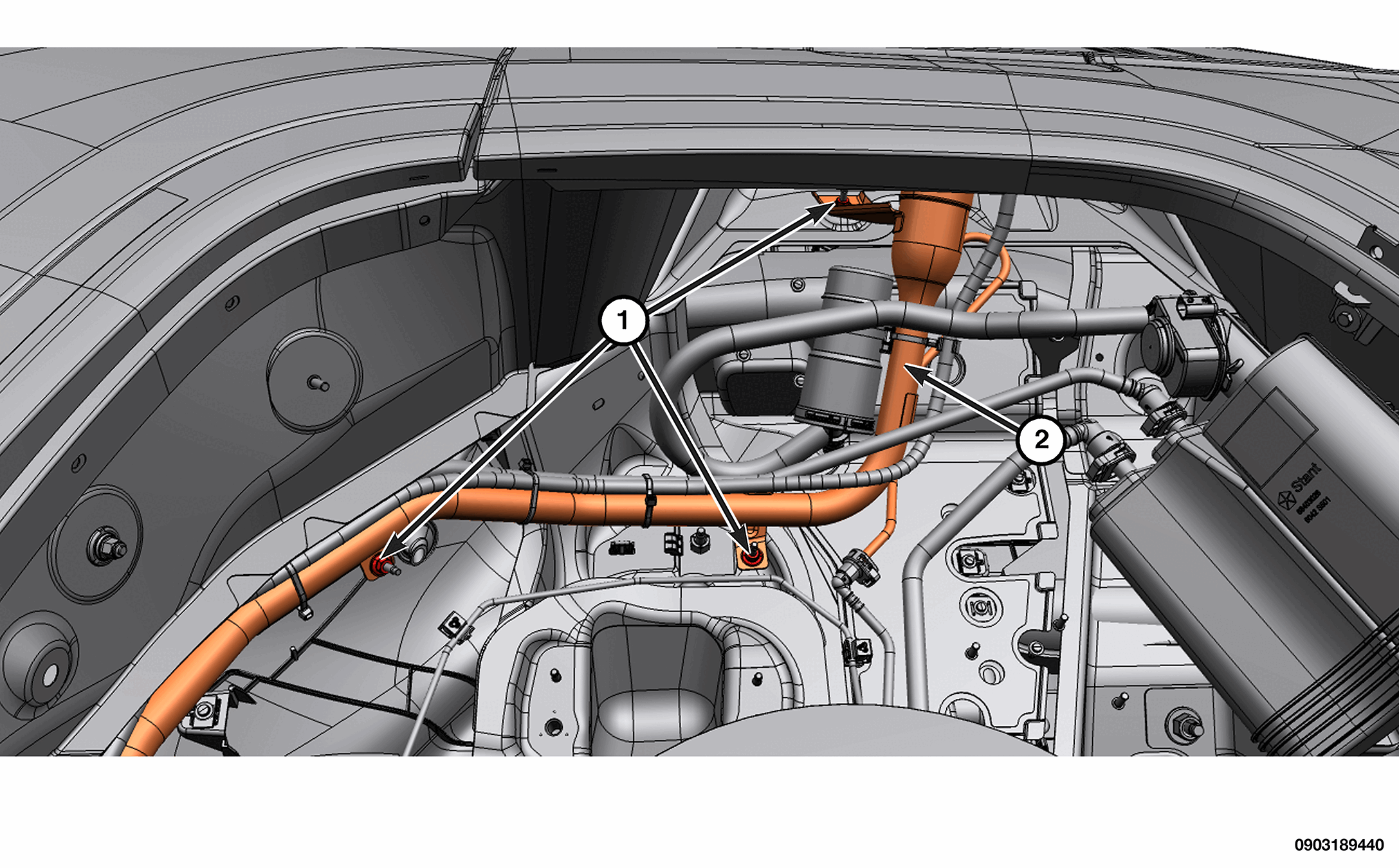

TORQUE SPECIFICATIONS - FUEL SYSTEM (3 OF 4)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Fuel Filler Tube to Body Nut(s) | 8 N. m (71 In. Lbs.) | - |

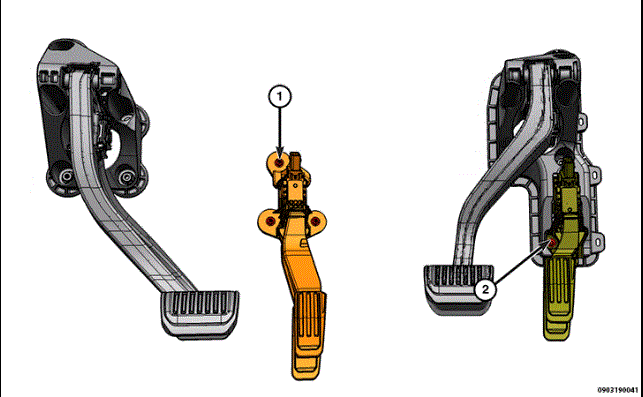

TORQUE SPECIFICATIONS - FUEL SYSTEM (4 OF 4)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| - | Accelerator Pedal to Bulkhead Nuts | 9 N. m (80 In. Lbs.) | - |
| - | Accelerator Pedal to Bracket Bolt (RHD) | 5 N. m (44 In. Lbs.) | - |
