Front Engine
TORQUE SPECIFICATIONS - FRONT ENGINE

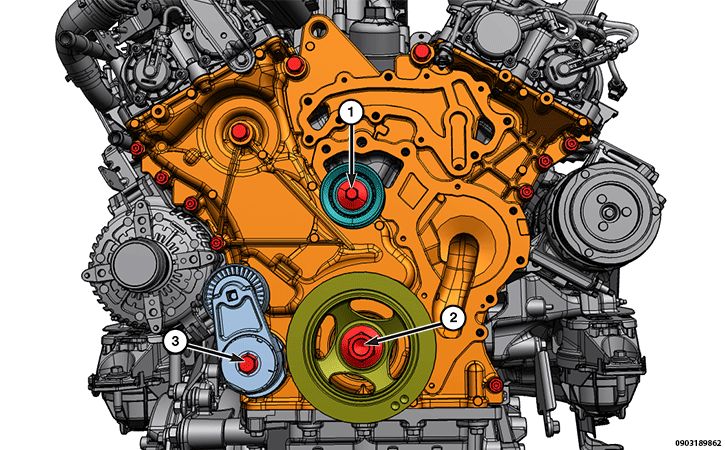

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Idler Pulley Bolt | 25 N.m (18 Ft. Lbs.) | - |
| 2 | Vibration Damper M16 Bolt | 40 N.m (30 Ft. Lbs.) + 105° Turn | - |
| 3 | Belt Tensioner Bolt | 50 N.m (37 Ft. Lbs.) | - |

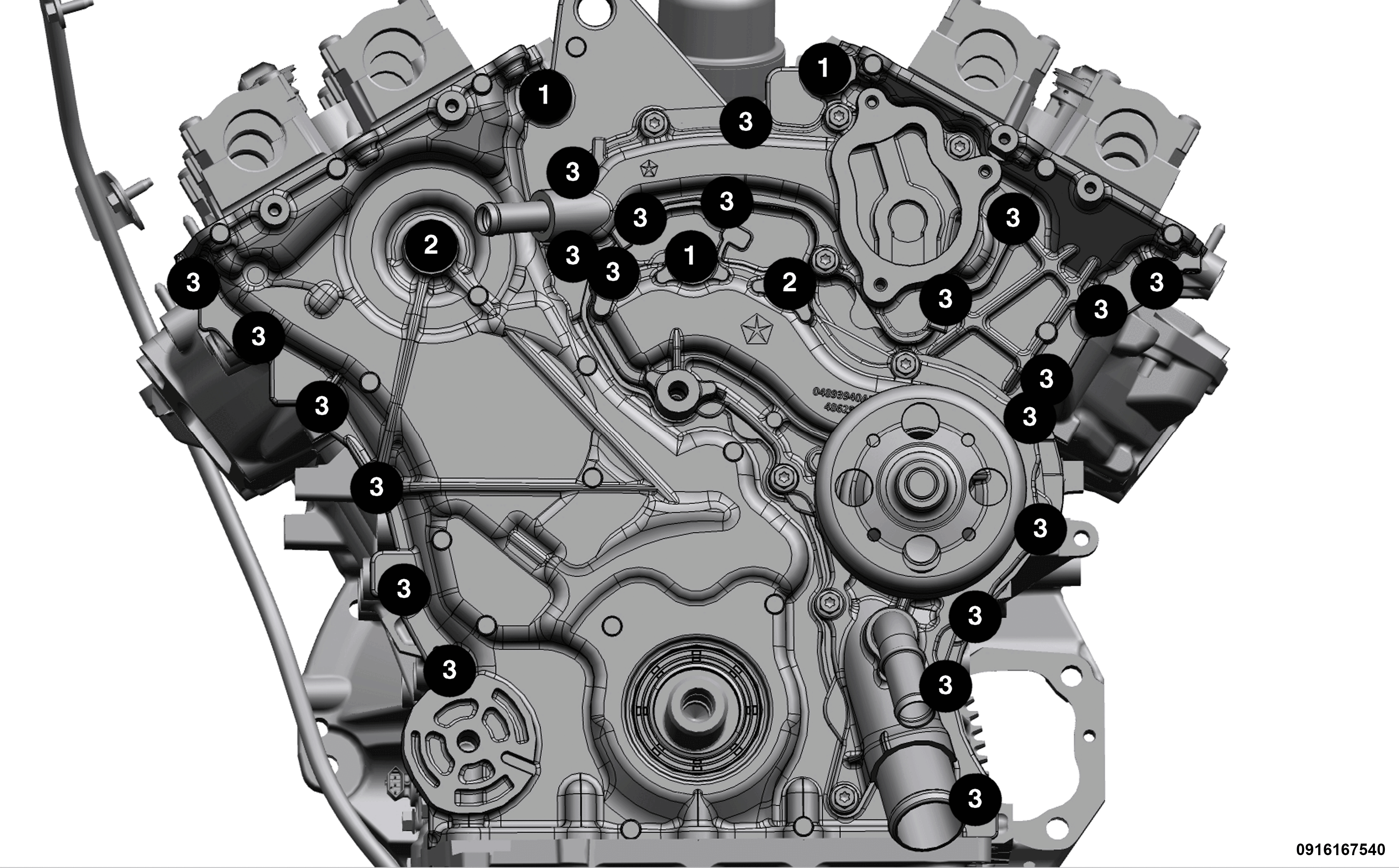

| 4 | Engine Timing Cover M6 Bolts Engine Timing Cover M8 Bolt Engine Timing Cover M10 Bolts |
12 N.m (9 Ft. Lbs.) 25 N.m (18 Ft. Lbs.) 55 N.m (41 Ft. Lbs.) |
Tighten in a criss-cross pattern
|
