Engine Block
TORQUE SPECIFICATIONS - ENGINE BLOCK
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|

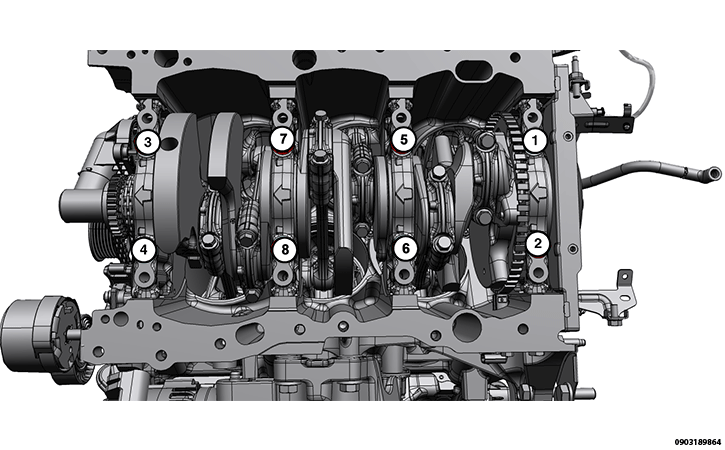

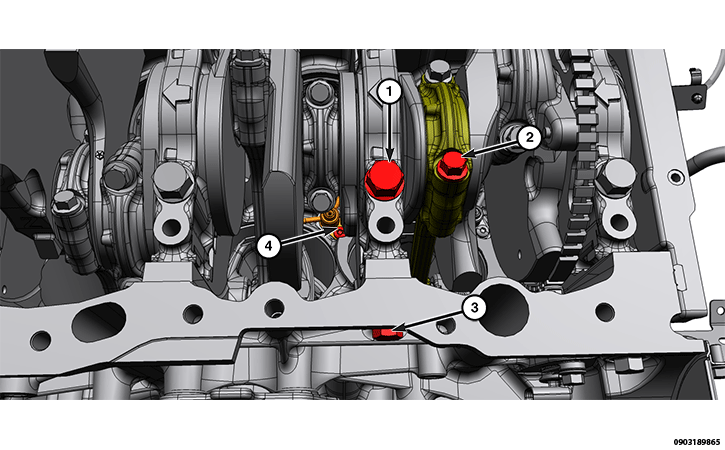

| 1 | Crankshaft Inner Main Bearing Cap M11 Bolts | 20 N.m (15 Ft. Lbs.) + 90° Turn | Tightening Sequence |
| 2 | Connecting Rod Cap Bolts | 20 N.m (15 Ft. Lbs.) + 90° Turn | - |

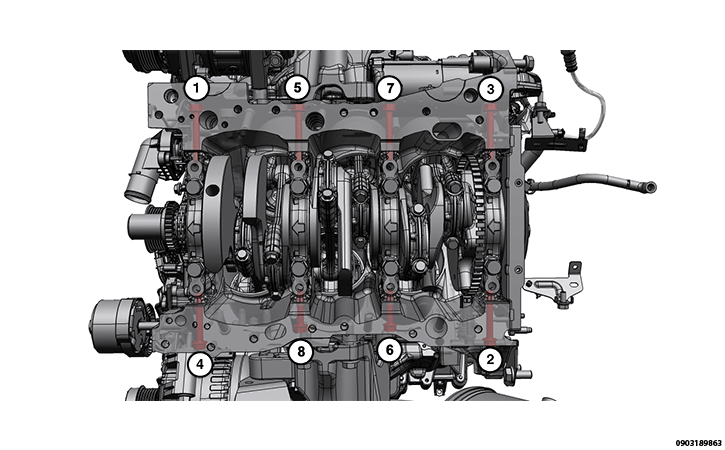

| 3 | Crankshaft Side Main Bearing Cap (Tie Bolt) M8 Bolts | 30 N.m (22 Ft. Lbs.) | Tightening Sequence |
| 4 | Piston Oil Cooler Jet to Engine Block Bolt | 6 N.m (63 In. Lbs.) | - |

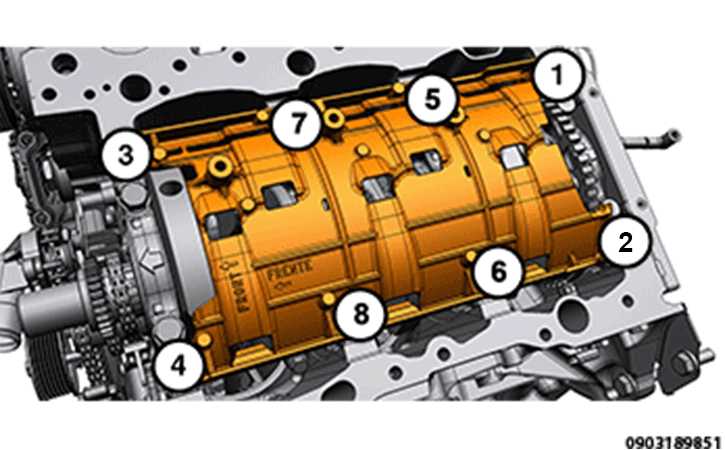

| - | Crankshaft Outer Main Bearing Cap and Windage Tray M8 Bolts | 21 N.m (15 Ft. Lbs.) + 90° Turn | Tightening Sequence |
| - | Crankshaft Target Wheel to Counterweight Bolts | 11 N.m (8 Ft. Lbs.) | - |

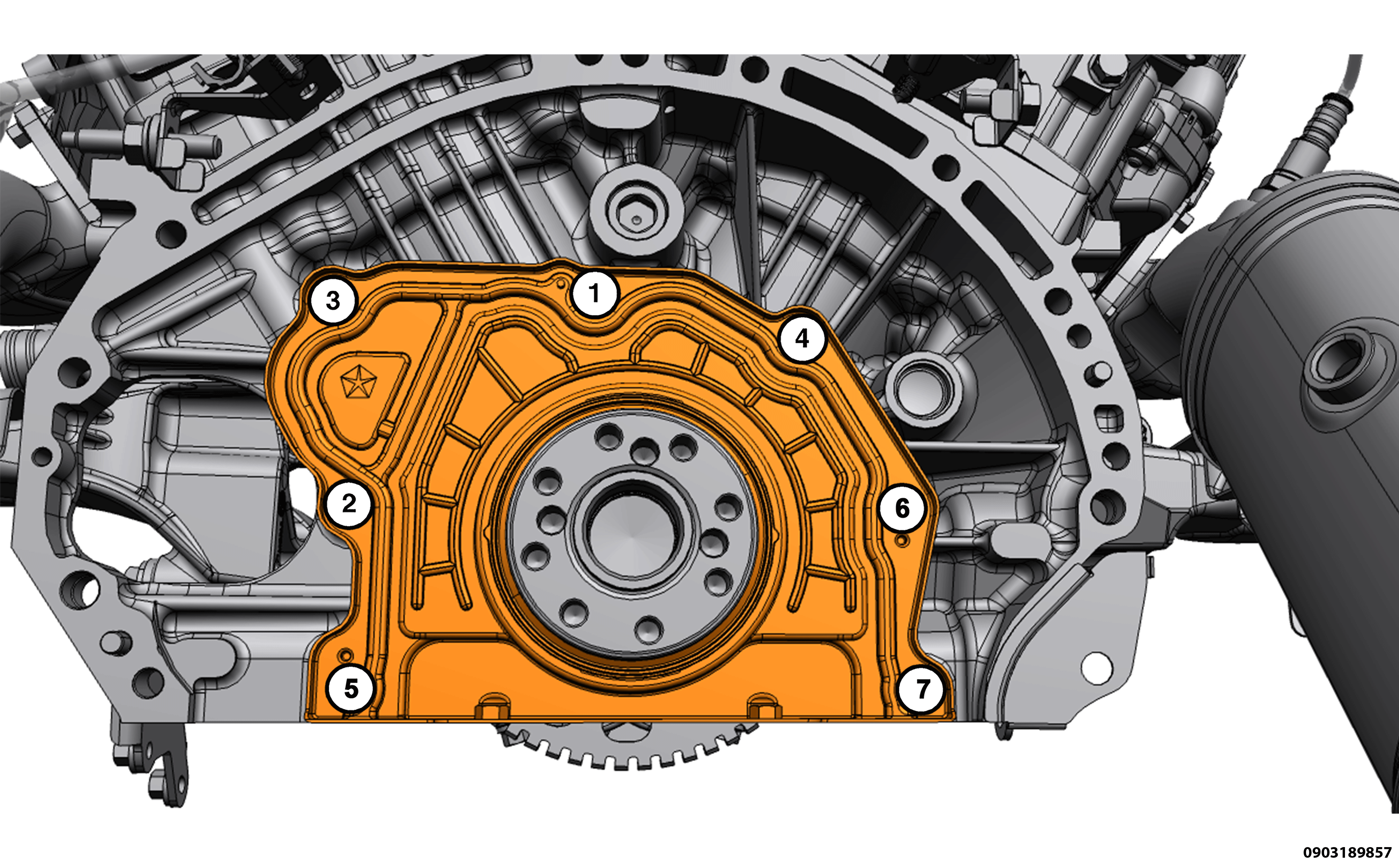

| - | Rear Crankshaft Oil Seal Retainer Bolts | 12 N.m (9 Ft. Lbs.) | Tightening Sequence |
