Cooling System
TORQUE SPECIFICATIONS - COOLING SYSTEM

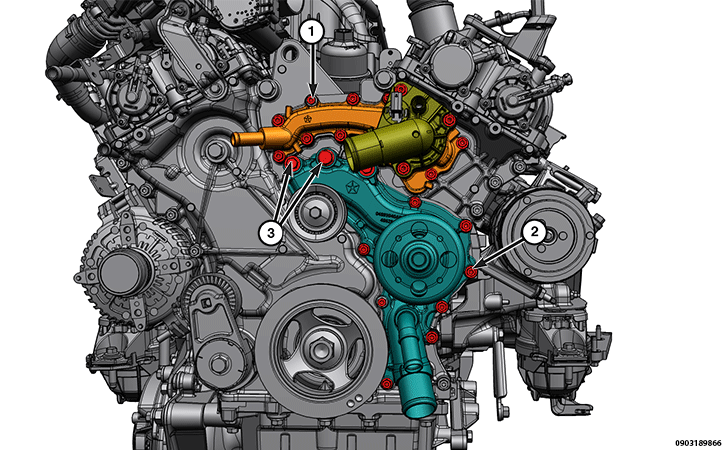

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|

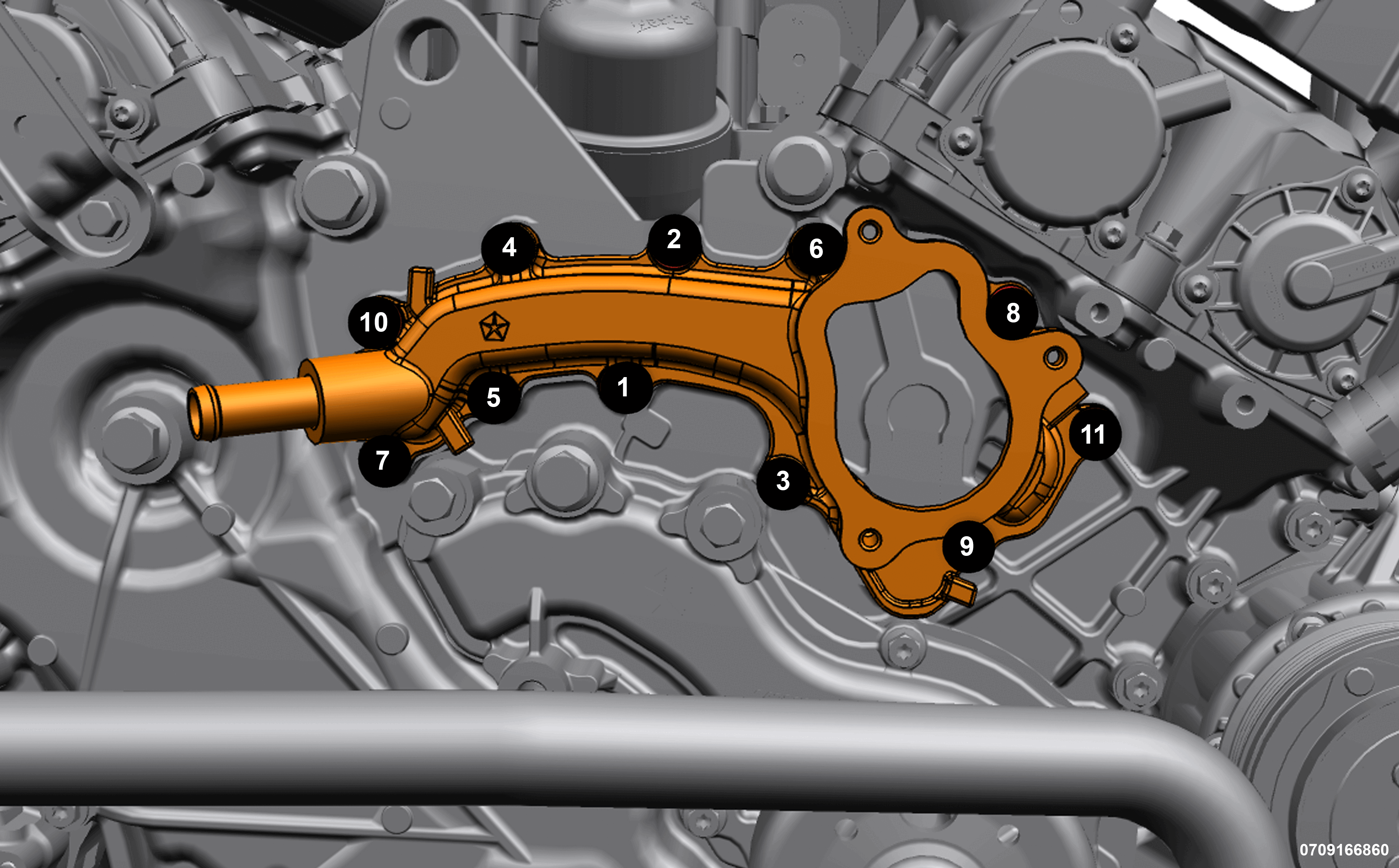

| 1 | Coolant Crossover Bolts | 12 N.m (9 Ft. Lbs.) | Tightening Sequence The shorter M6 mounting bolts (3, 4, 6, 8) bolt directly to the engine timing cover. |

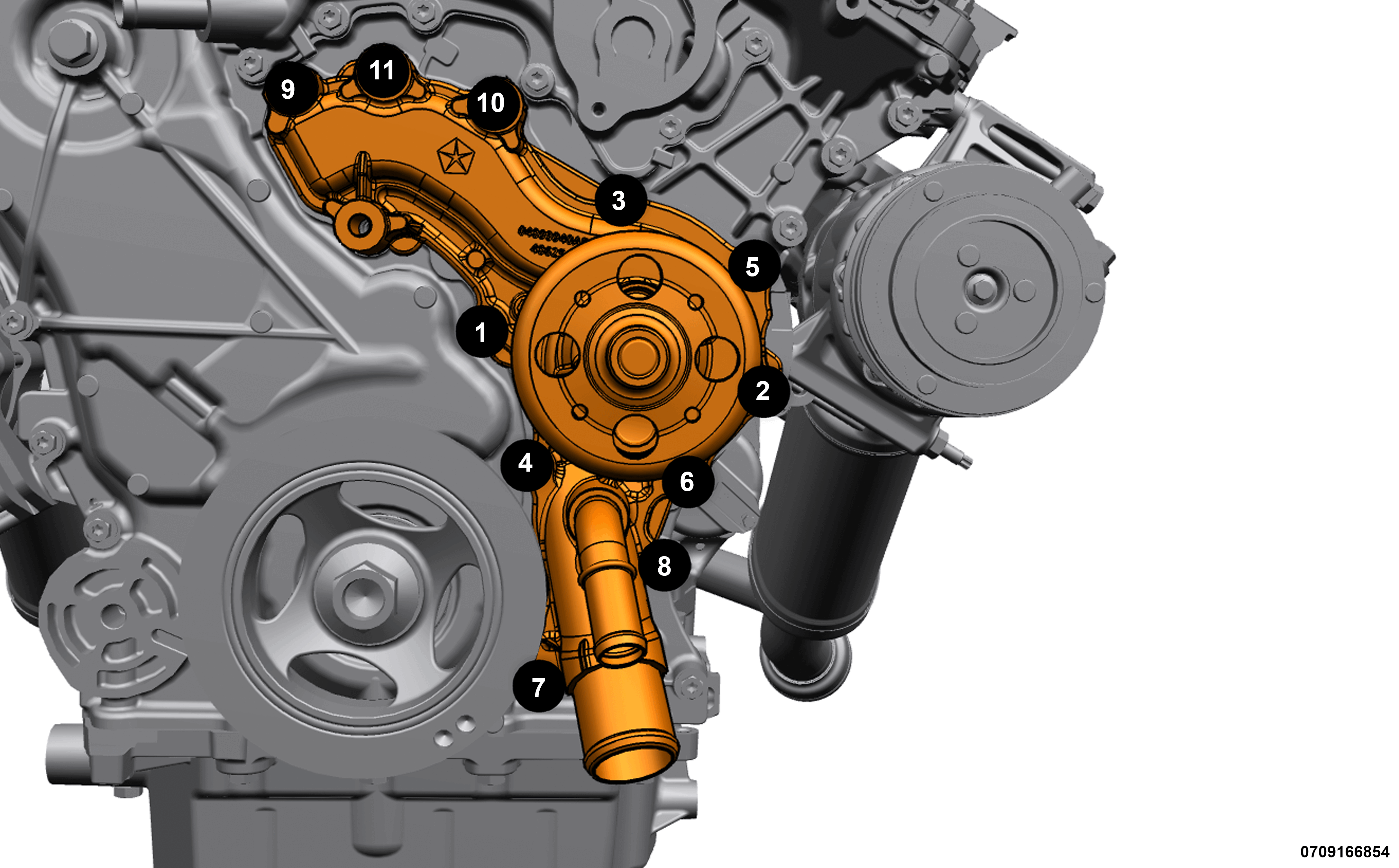

| 2 | Water Pump Bolts | M6 Bolts (1 - 8) 12 N.m (9 Ft. Lbs.) M8 Bolts (9 and 10) 28 N.m (21 Ft. Lbs.) M10 Bolt (11) 50 N.m (37 Ft. Lbs.) |
Tightening Sequence |
| 3 | Thermostat Housing Bolts | 10 N.m (89 In. Lbs.) | - |
| A/C line to Radiator Crossmember Bolt | 9 N.m (80 In. Lbs.) | - | |
| Block Heater Bolt | 12 N.m (9 Ft. Lbs.) | - | |
| Cooling Fan Bolts | 7 N.m (62 In. Lbs.) | - | |
| Coolant Tube Bolt | 9 N.m (80 In. Lbs.) | - | |
| Pressurized Coolant Bottle Nuts | 7 N.m (62 In. Lbs.) | - | |
| Radiator Support Bracket Bolt | 12 N.m (9 Ft. Lbs.) | - | |
| Upper Radiator Crossmember Bolts | 15 N.m (11 Ft. Lbs.) | - |
