Striker, Latch: Installation

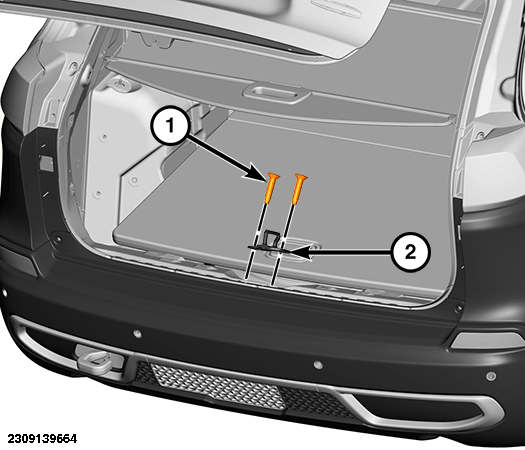

GC0186744Courtesy of CHRYSLER GROUP, LLC
  1. Align the liftgate striker (2) with the reference mark made previously and tighten the liftgate striker bolts (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
  2. Adjust the latch striker position as necessary. Refer to GAP AND FLUSH, SPECIFICATIONS .
  3. Install the liftgate sill plate .
