Isolator, Rear CROSSMEMBER, Frame: Installation
CAUTION:
It is very important that isolator be installed in same position as original to maintain vehicle ride quality and isolator longevity. That is why isolator, once installed, needs to closely match reference marks applied upon removal of original isolator.

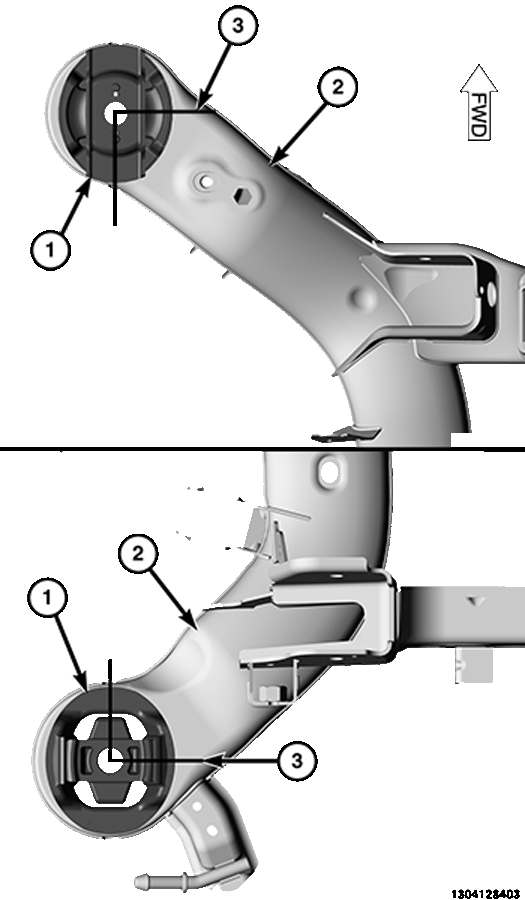

- Position isolator (1) on crossmember (2) isolator bore aligning isolator can flange with reference marks applied during removal.

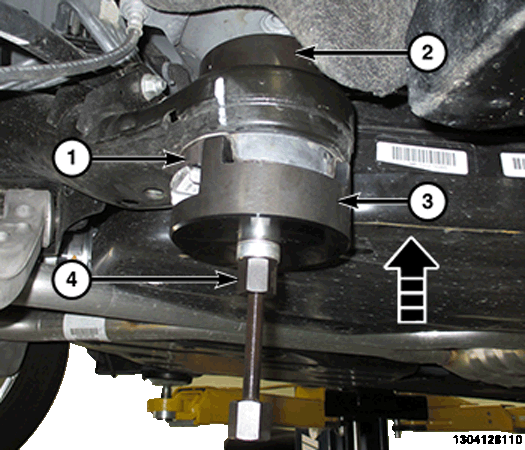

1 - Isolator 2 - 2025904170 Receiver, Bushing Installation 3 - 2025903170 Installer, Bushing 4 - 2026900170 Kit, Pressing Tool - Prior to using special tools, lubricate Screw Assembly (special tool #8838-2, Screw Assembly) (1) threads to provide ease of use and promote tool longevity.NOTE:
When installing thrust bearing, be sure to place hardened side toward bolt head.
NOTE:A mixture of soap and water may be used to aid installation of the isolator.
- Assemble tools over isolator as shown using tool kits (special tool #2025900170, Kit, Bushing Installer-Remover) and (special tool #2026900170, Kit, Pressing Tool).
- Tighten the screw assembly (special tool #8838-2, Screw Assembly), pressing the isolator into crossmember. Install isolator until isolator can flange contacts surface of crossmember.
- Remove tools.

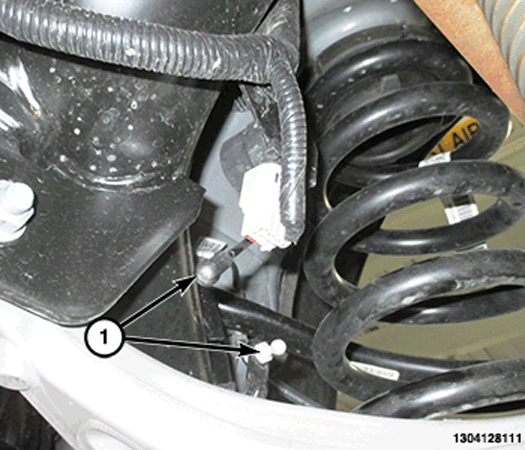

- Connect the ride height sensor (1), if necessary.

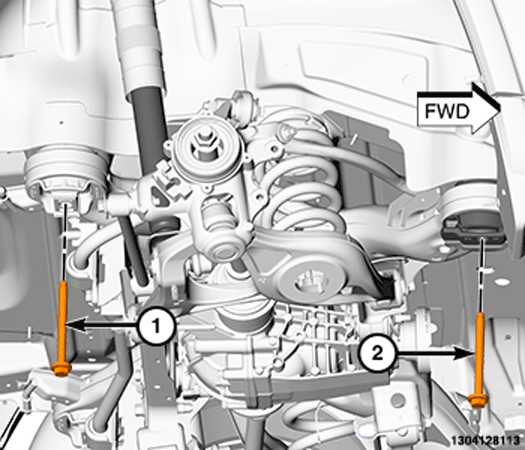

- Install the bolts (1, 2) securing the crossmember on the side of the vehicle being worked on and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

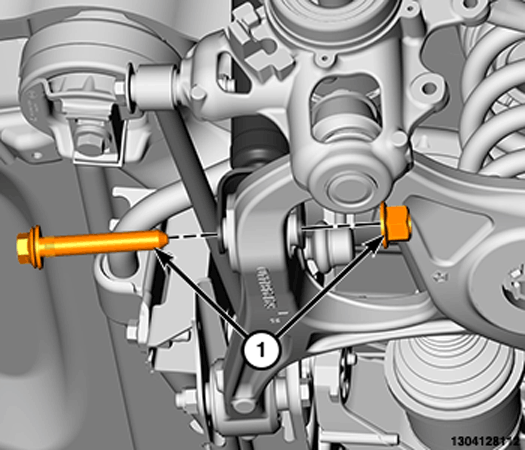

- Support the rear control arm with a suitable device and Install the lower shock bolt (1).
- Tighten the bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the exhaust. Refer to MUFFLER, EXHAUST, INSTALLATION .
