Sensor, Dynamics: Removal

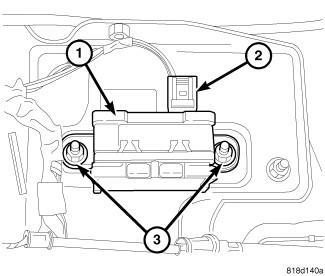

GC0130688Courtesy of CHRYSLER GROUP, LLC
  1. Remove the center console.
  2. Disconnect the electrical connector (2) for the sensor (1).
  3. Remove the two nuts (3) securing the sensor (1).
  4. Remove the sensor (1).
