Front, Base - NAFTA

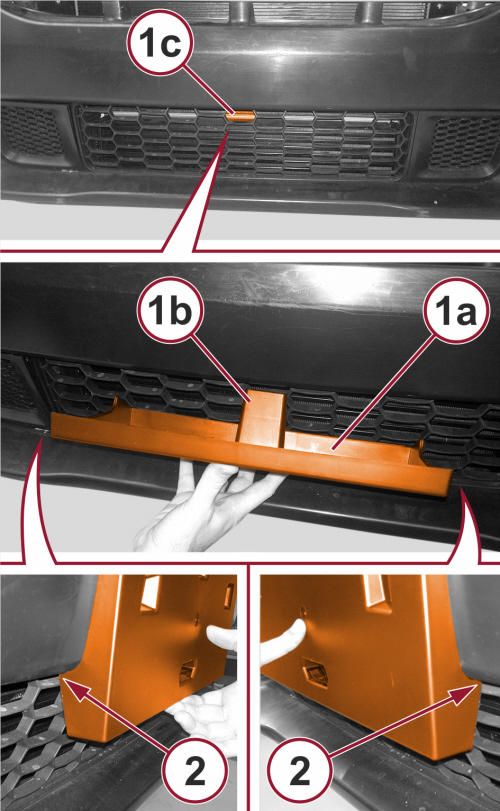

GC0164463Courtesy of CHRYSLER GROUP, LLC
  1. Place the plate holder (1a) with the insert centering (1b) in the bumper, centering it with the reference (1c) on the bumper.
  2. Raise the number plate holder to align the side profiles.

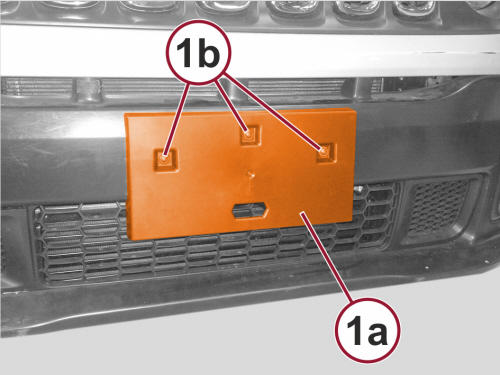

    GC0164811Courtesy of CHRYSLER GROUP, LLC
  3. Support the plate holder (1a) and tighten the mounting screws (1b) provided.
  4. Install the front license plate.
