Home >> Jeep >> 2017 >> Renegade Trailhawk >> Repair and Diagnosis >> Maintenance >> Procedures >> Vehicle Quick Reference >> New Vehicle Preparation Instructions >> License Plate Installation >> Front, Base - EMEA

Front, Base - EMEA

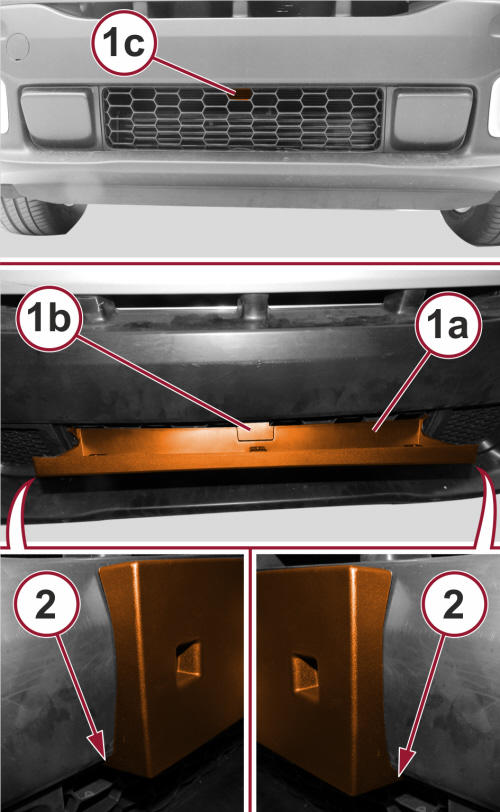

GC0164892Courtesy of CHRYSLER GROUP, LLC
  1. Place the plate holder (1a) with the insert centering (1b) in the bumper, centering it with the reference (1c) on the bumper.
  2. Raise the number plate holder to align the side profiles.

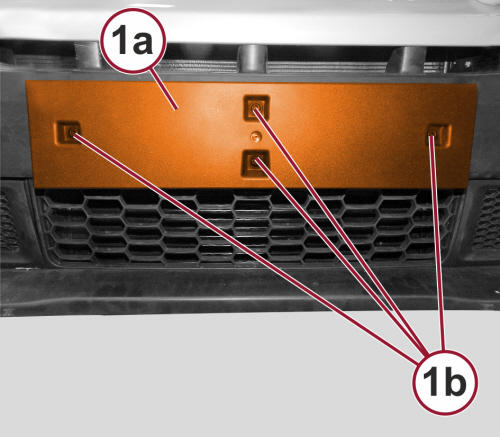

    GC0164412Courtesy of CHRYSLER GROUP, LLC
  3. Support the plate holder (1a) and tighten the mounting screws (1b) provided.
  4. Install the front license plate.
