Mp2010 Transfer Case (Service Information): Installation

Courtesy of CHRYSLER GROUP, LLC

1. Mount transfer case on a transmission jack.
2. Secure transfer case to jack with chains.
3. Position transfer case under vehicle.

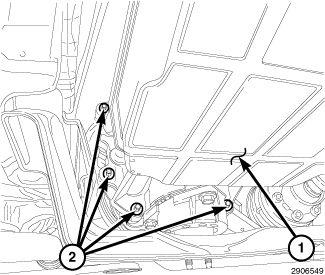

4. Align transfer case and transmission (1) shafts and install transfer case onto the transmission.
5. Install and tighten all transfer case attaching bolts (2) to the proper torque specifications. Refer to MP2010 TRANSFER CASE TORQUE SPECIFICATIONS TABLE  .
6. Connect front propeller shaft and install rear propeller shaft. Refer to SHAFT, DRIVE, FRONT and SHAFT, DRIVE, REAR, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

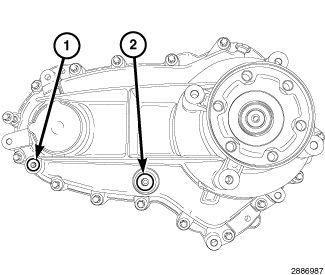

7. Remove transfer case fill plug (2).
8. Fill transfer case with correct fluid. Refer to STANDARD PROCEDURE  .
9. Install the transfer case fill plug (2) and tighten the plug to the proper torque specifications. Refer to MP2010 TRANSFER CASE TORQUE SPECIFICATIONS TABLE  .
10. Install rear crossmember and skid plate, if equipped. Tighten crossmember bolts to the proper torque specifications. Refer to MP2010 TRANSFER CASE TORQUE SPECIFICATIONS TABLE  .
11. Remove transmission jack and support stand.
12. Lower vehicle and verify transfer case operation.
