Mp2010 Transfer Case (Service Information): Assembly

NOTE:

Lubricate all seals with MOPAR® ATF+4 prior to installation.

Clean any sealer from the case halves.

Courtesy of CHRYSLER GROUP, LLC

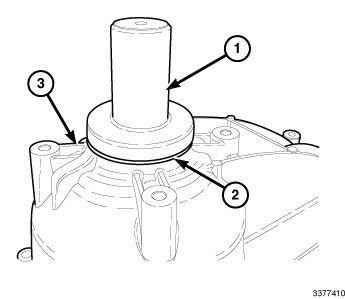

Using seal installer (special tool #8802, Installer, Seal) (1), install rear output seal (2) into the case half (3).

Courtesy of CHRYSLER GROUP, LLC

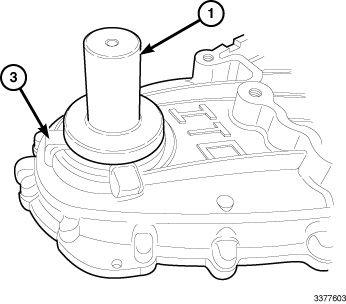

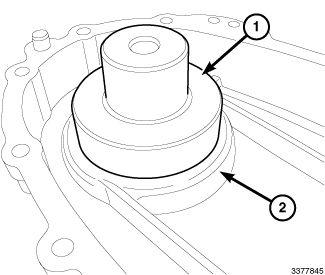

Using seal installer (special tool #8802, Installer, Seal) (1), install front output seal into case half (2).

Courtesy of CHRYSLER GROUP, LLC

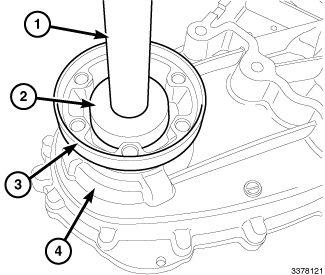

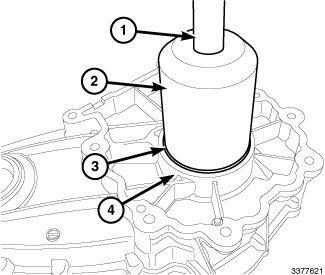

Using seal installer (special tool #9672, Installer, Seal) (2) with drive handle (special tool #C-4171, Driver Handle, Universal) (1), install input shaft seal (3) into case half (4).

Courtesy of CHRYSLER GROUP, LLC
Install the snap ring (1).

Courtesy of CHRYSLER GROUP, LLC

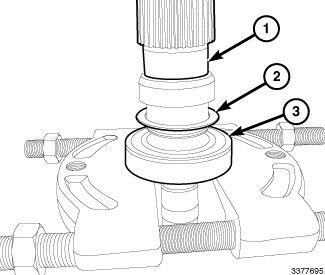

Install wave spacer (2) on input shaft (1).
Install bearing (3) onto input shaft (1) and press into place.

Courtesy of CHRYSLER GROUP, LLC

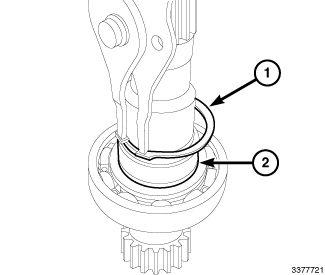

Install snap ring (1) on input shaft (2).

Courtesy of CHRYSLER GROUP, LLC

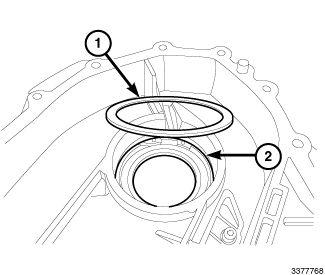

Install input shaft bearing spacer (1) into the case half (2).

Courtesy of CHRYSLER GROUP, LLC

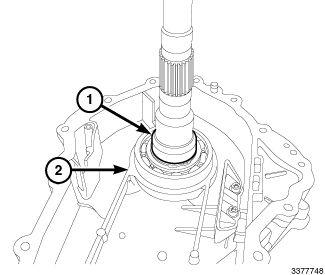

Install input shaft and bearing assembly (1) into case half (2) and press into place.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Both output shaft bearings have a tapered inner race that must be installed toward the seal.
Properly support case half in press, and using (special tool #9227, Gauge, Pinion Height) (1), press bearing into case (2). (Front output bearing shown, rear output bearing uses the same tool and process).

Courtesy of CHRYSLER GROUP, LLC

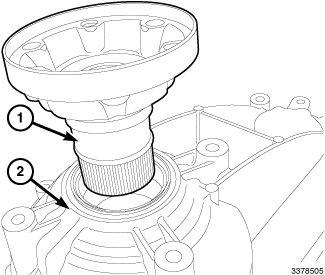

Install the front output shaft. Start the shaft into the bearing by hand with a rocking action to get the snap ring started into the bearing.

Courtesy of CHRYSLER GROUP, LLC

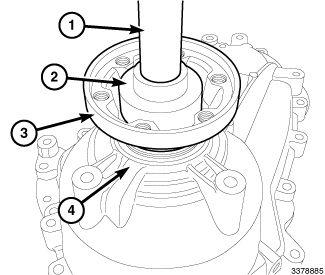

Seat the front output shaft (3) into the bearing and case (4) using installer (special tool #C-4657, Installer, Seal) (2) and Handle (special tool #C-4171, Driver Handle, Universal) (1).

Courtesy of CHRYSLER GROUP, LLC

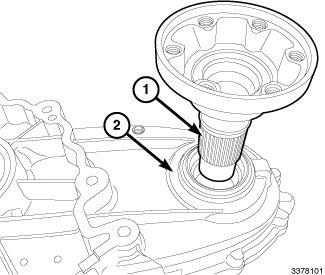

Install the rear output shaft. Start the shaft into the bearing by hand with a rocking action to get the snap ring started into the bearing.

Courtesy of CHRYSLER GROUP, LLC
Seat the rear output shaft (3) into the bearing and case (4) using installer (special tool #C-4657, Installer, Seal) (2) inverted and Handle (special tool #C-4171, Driver Handle, Universal) (1).

Courtesy of CHRYSLER GROUP, LLC
Install the thrust washer (2) on the input shaft (3) with the four groves upward and install snap ring (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
There is a blue link on one side of the chain. This blue link MUST be installed facing upward.
Install the chain (1) and sprockets (2, 3) on the input shaft and front output shaft.

Courtesy of CHRYSLER GROUP, LLC
Install the oil slinger (2) differential (1).
Apply a small amount of RTV to the magnet to hold in place and install.

Courtesy of CHRYSLER GROUP, LLC

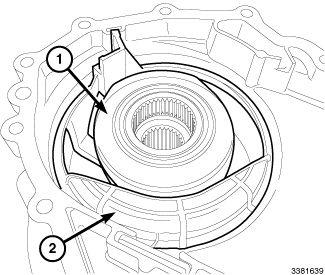

After installing differential, turn so the oil slinger will hold differential in place during assembly of the case halves.

Courtesy of CHRYSLER GROUP, LLC
Apply bead of Mopar® Gasket Maker, or equivalent, to one of the mating surfaces of the front or rear housing.
Install the rear case half. While installing the case half, rotate the output shaft flange back and forth to engage the input shaft into the differential.
Install case bolts and tighten housing bolts in a crisscross pattern to the proper torque specifications. Refer to MP2010 TRANSFER CASE TORQUE SPECIFICATIONS TABLE .
