Section 27 (Starting System (Service Information)): Starter: Installation: 3.7L

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

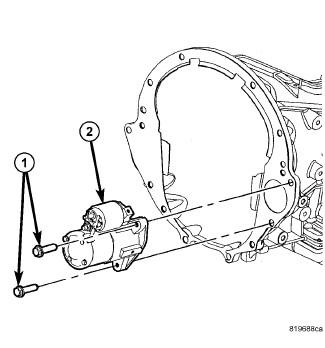

Fig 1: STARTER MOTOR - 3.7L

Courtesy of CHRYSLER LLC

Rotate starter assembly (2) to allow positioning into transmission.
Install two starter mounting bolts (1) and tighten. Refer to TORQUE - STARTER .

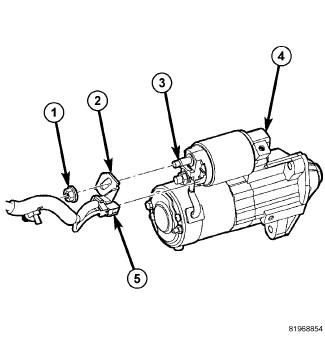

Fig 2: ELECTRICAL CONNECTION - STARTER MOTOR
Courtesy of CHRYSLER LLC
Position battery cable assembly (2) onto stud (3) while pushing solenoid connector (5) onto solenoid terminal.
Install nut (1) and tighten. Refer to TORQUE - STARTER .

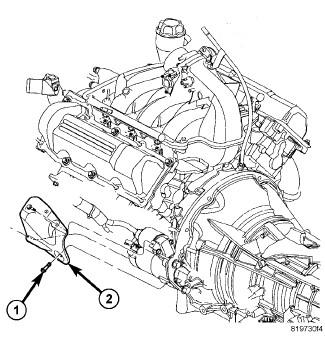

Fig 3: STARTER HEAT SHIELD - 3.7L
Courtesy of CHRYSLER LLC
Position starter heat shield (2) and install two bolts (1).
Four Wheel Drive Equipped: Install front propeller shaft.
Lower vehicle.
Connect negative battery cable.
