Battery System - Service Information: Battery: Installation: Installation

Position the battery onto the battery tray.

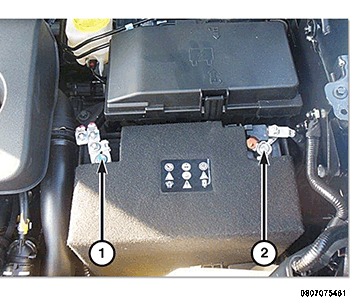

Fig 1: Captive Nut
Courtesy of CHRYSLER GROUP, LLC
Install the negative battery cable end to the negative battery terminal. Tighten the captive clamp nut (1) to 6 N.m (53 in. lbs.).
Install the battery thermal cover.

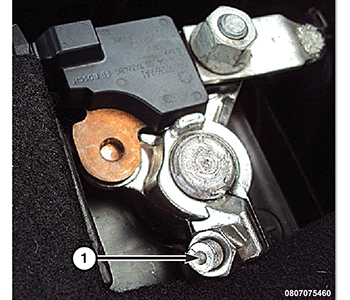

Fig 2: Positive & Negative Battery Cable
Courtesy of CHRYSLER GROUP, LLC
Connect the battery positive cable (1). Tighten to 7 N.m (62 in. lbs.).
