Shifter, Floor Console: Installation: Installation

Place the gear shifter in position on the floor pan.

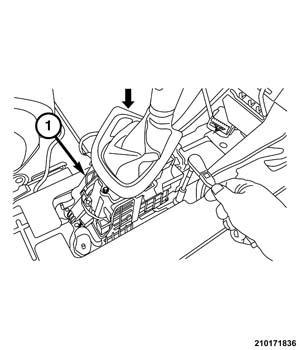

Fig 1: Gear Shifter
Courtesy of CHRYSLER GROUP, LLC
Install nuts to hold the gear shifter assembly (1) to the floor pan.
Insert the shift cable into the access hole on the front of the shifter and lock the retainer into the shifter.

Fig 2: Shifter Assembly & Gear Shift Cable End
Courtesy of CHRYSLER GROUP, LLC
Push the gear shift cable end (2) onto the pin under the shifter assembly (3).

Fig 3: PRND Wire Connector & Shifter Assembly
Courtesy of CHRYSLER GROUP, LLC
Connect the PRND wire connector into the shifter assembly connector.
Install the center floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
Connect the battery negative cable.
