Stabilizer Bar, Front: Installation: Installation

NOTE:

Inspect the brackets, insulators and links for wear or damage. Install new components as necessary.

  1. Install the stabilizer bar (2) to the crossmember.

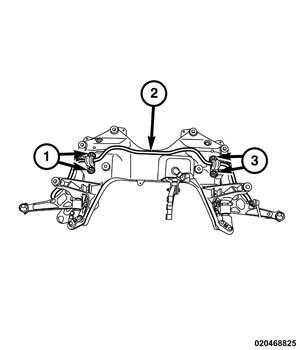

    Fig 1: Stabilizer Bar Retaining Bolts
    GC0155861Courtesy of CHRYSLER GROUP, LLC
  2. Install the four stabilizer bar mounting bolts (1, 3). Tighten the to Stabilizer Bar Mounting Bolts to Specification.
  3. Install the crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, INSTALLATION .
