P0533-A/C Pressure Sensor Circuit High: Notes

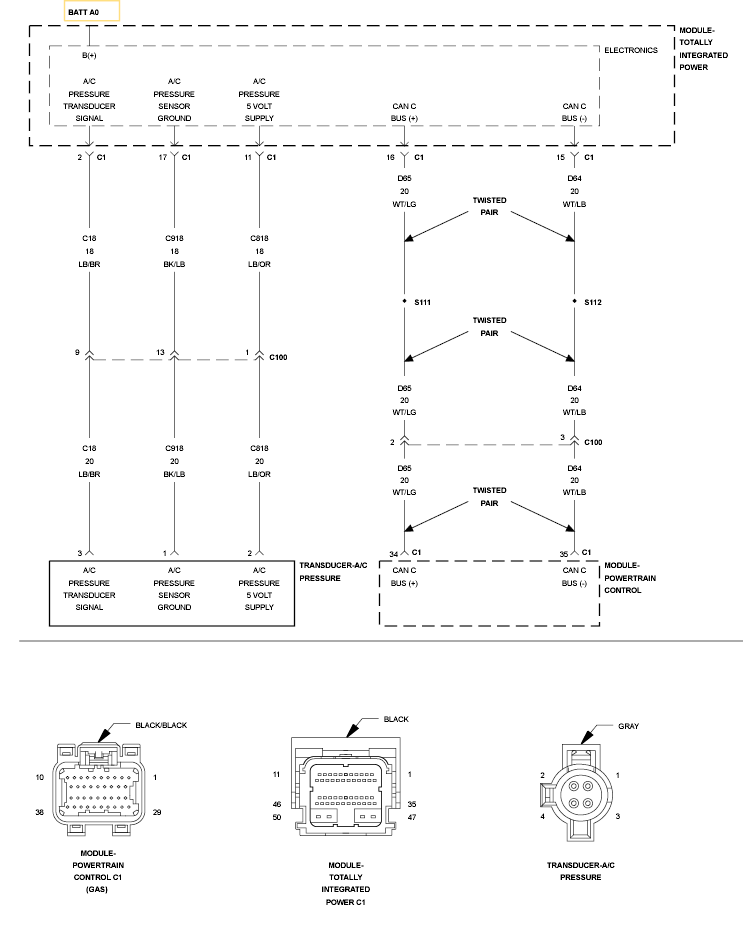

Fig 1: A/C Pressure Sensor Circuit

GC0131922

Courtesy of CHRYSLER LLC
