Totally Integrated Power Module Connector End View (C4)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

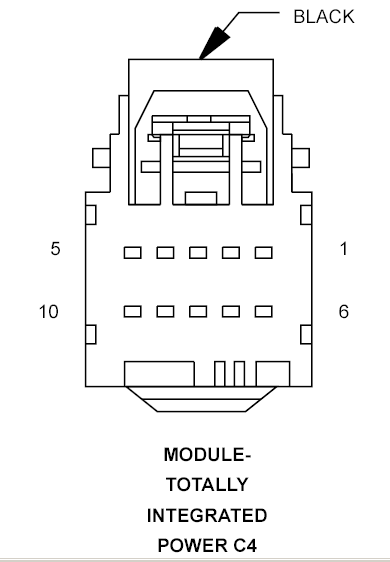

MODULE-TOTALLY INTEGRATED POWER C4 - BLACK 10-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L61 20WT/RD |
LEFT TURN SIGNAL |
| 2 |
L60 20WT/TN |
RIGHT TURN SIGNAL |
| 3 |
L34 20WT/GY |
RIGHT HIGH BEAM OUTPUT |
| 4 |
L43 20WT/DB |
LEFT LOW BEAM OUTPUT |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
G31 20VT/LG |
AAT SIGNAL |
| 9 |
G931 20VT/DB |
AAT RETURN |
| 10 |
- |
- |
