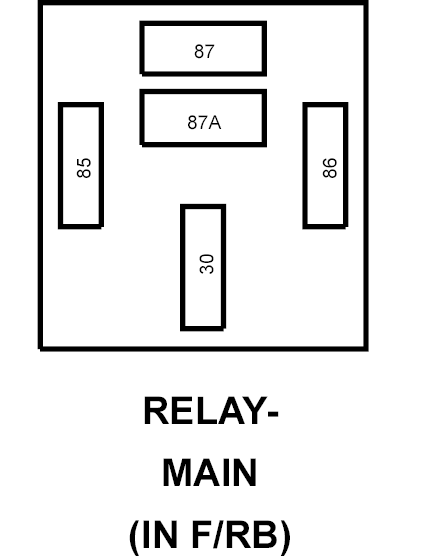

Main Relay Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

RELAY-MAIN

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A14 12RD/YL	FUSED B(+)
85	A935 12RD/LB	FUSED B(+)
86	K51 12BR/WT	MAIN RELAY CONTROL
87	K542 12BR	MAIN RELAY OUTPUT
87A	-	-
