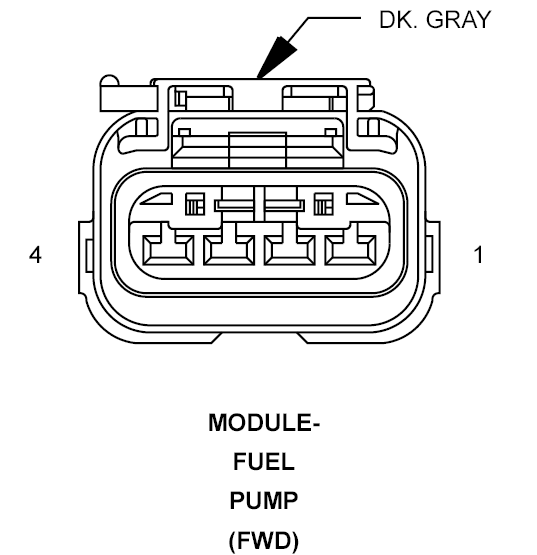

Fuel Pump Module (FWD) Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

MODULE-FUEL PUMP - DK. GRAY 4-WAY (FWD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z965 14BK/GY	GROUND
2	Z965 20BK/GY	GROUND
3	N4 20DB/WT	FUEL LEVEL SIGNAL 1
4	N1 16DB/OR	FUEL PUMP CONTROL OUTPUT
5	-	-
