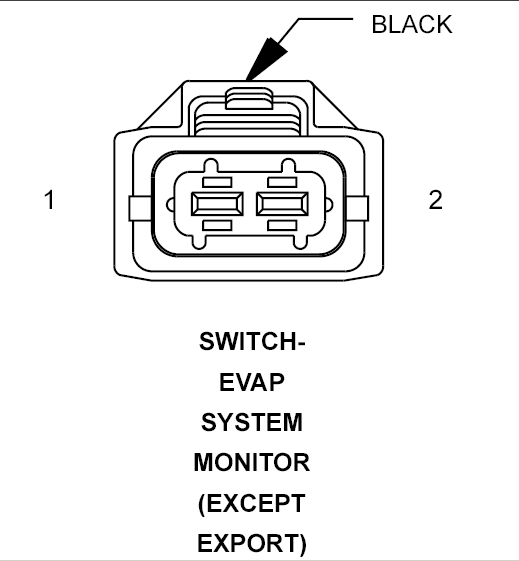

EVAP System Monitor Switch (Except Export) Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-EVAP SYSTEM MONITOR - BLACK 2-WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z965 20BK |
GROUND (CALIFORNIA) |
| 1 |
Z965 20BK/GY |
GROUND (EXCEPT CALIFORNIA) |
| 2 |
K107 18VT/LB |
ESM SIGNAL (CALIFORNIA) |
| 2 |
K107 20VT/LB |
ESM SIGNAL (EXCEPT CALIFORNIA) |
