Accelerator Pedal Position Sensor Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

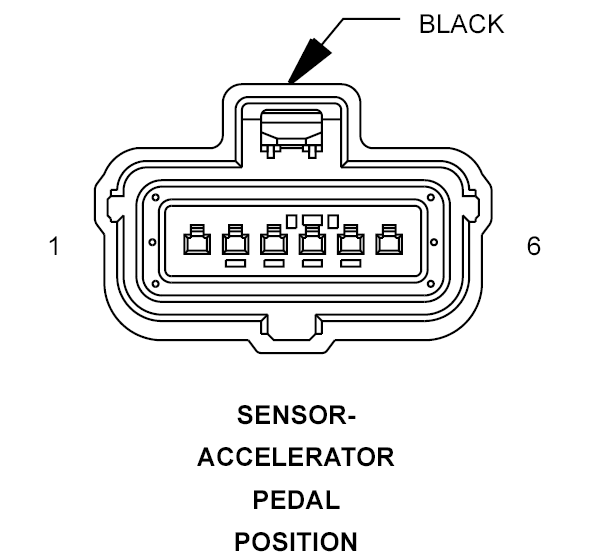

SENSOR-ACCELERATOR PEDAL POSITION - BLACK 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K29 20WT/BR | APP SIGNAL 2 |
| 2 | K400 20BR/VT | APP SENSOR GROUND 2 |
| 3 | K854 20VT/BR | 5 VOLT SUPPLY (DIESEL) |
| 3 | K858 20BR/GY | 5 VOLT SUPPLY (GAS) |
| 4 | K23 20BR/OR | APP SIGNAL 1 |
| 5 | K167 20BR/YL | APP SENSOR GROUND 1 |
| 6 | K852 20BR/VT | 5 VOLT SUPPLY (DIESEL) |
| 6 | F856 20YL/PK | 5 VOLT SUPPLY (GAS) |
