Driver Courtesy Lamp Connector End View

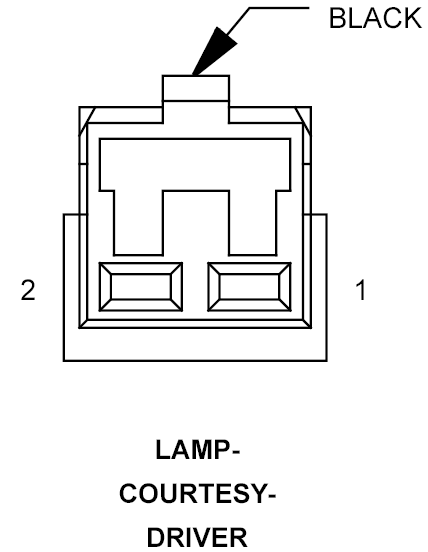

LAMP-COURTESY-DRIVER - BLACK 2-WAY

GJK780125Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 M24 20YL/WT COURTESY LAMPS DRIVER
2 Z910 20BK/WT GROUND
