Driver Squib 1 Circuit Open: Notes

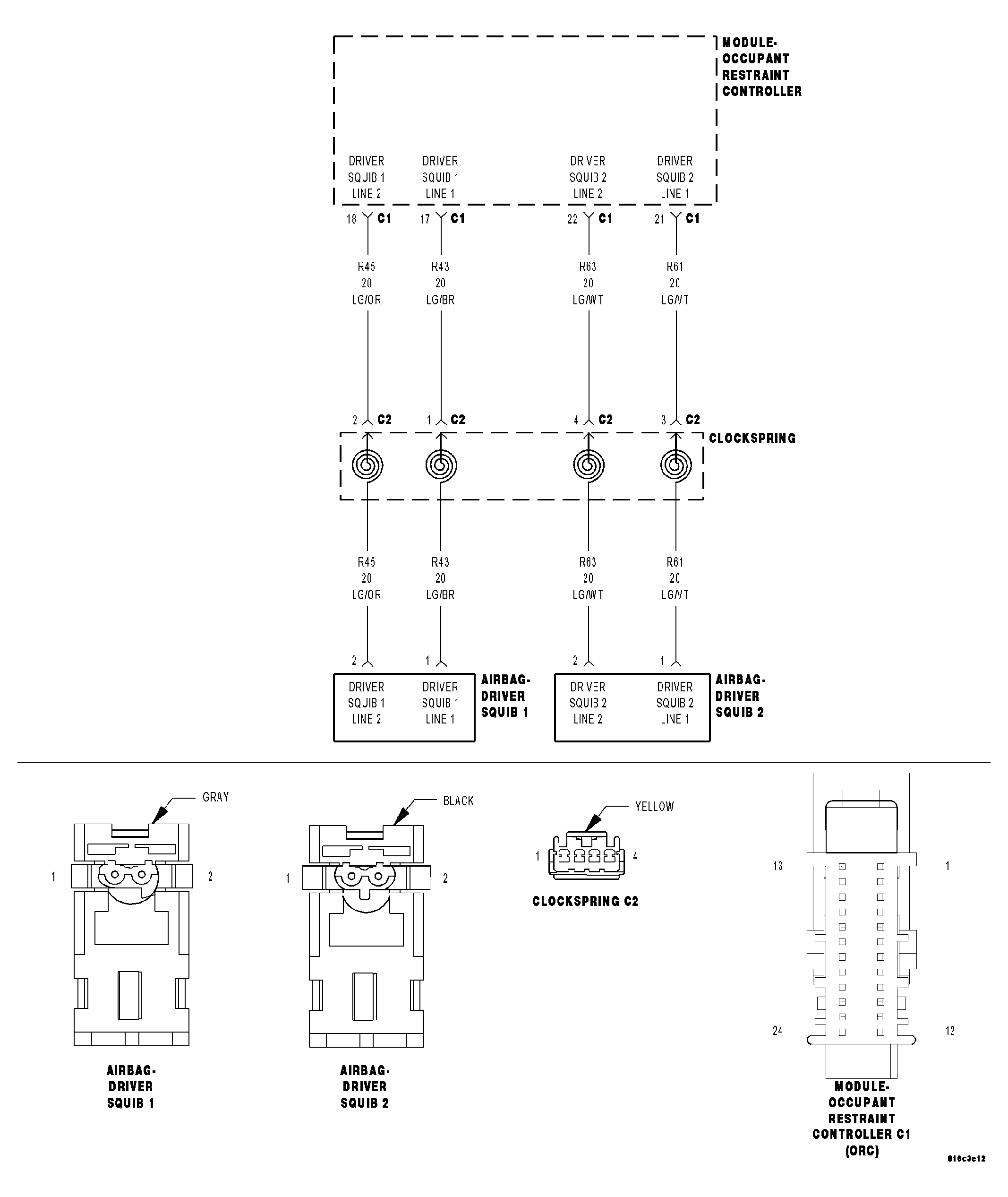

Fig 1: Driver Squib Lines Circuit Diagram

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   With the ignition on.

2. Set Condition:

   The Occupant Restraint Controller (ORC) monitors the resistance of the Driver Squib 1 circuits. The ORC will set this DTC if it detects an open or high resistance on the Driver Squib 1 circuits.
