Engine Coolant Level Sensor (Diesel) Connector End View

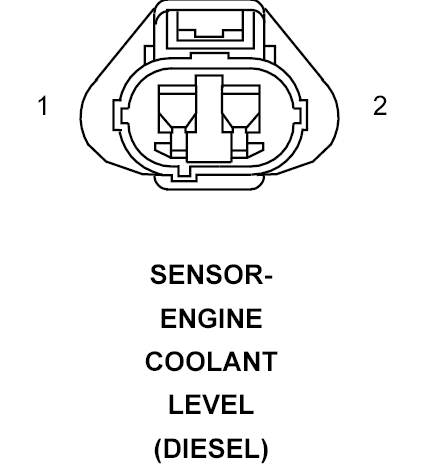

SENSOR-ENGINE COOLANT LEVEL - 2-WAY (DIESEL)

GKJ780234Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G18 20OR/VT LOW COOLANT FLUID LEVEL SENSE
2 Z939 20BK GROUND
