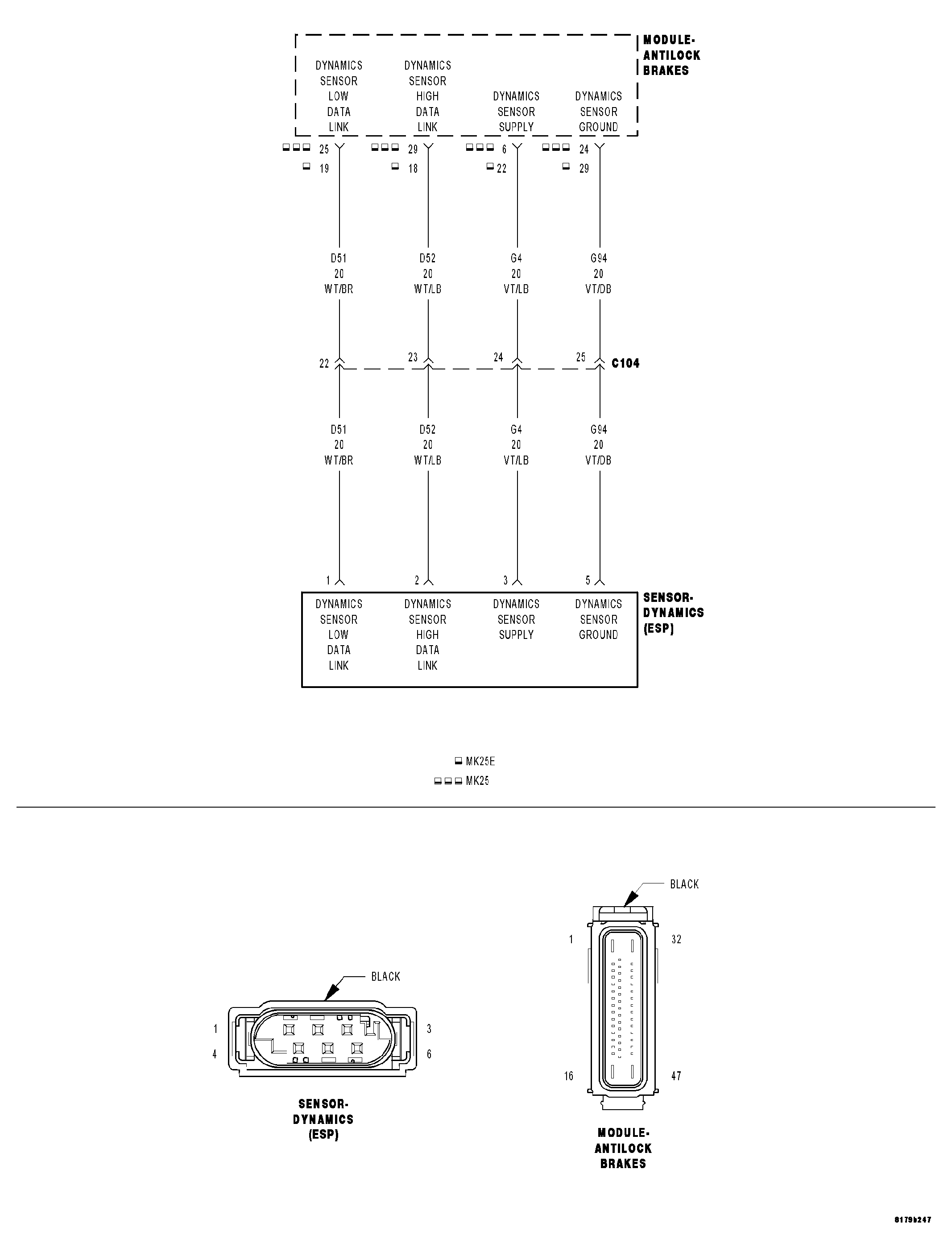

Home >> Jeep >> 2007 >> Grand Cherokee SRT-8 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> Abs >> C1210-G Sensor Input Circuit Performance >> Circuit Schematic
