Manifold Absolute Pressure Sensor - 3 Way

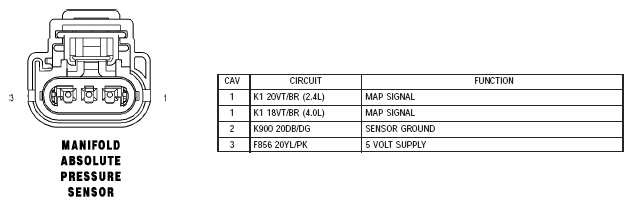

Fig 1: Connector Pinouts - Manifold Absolute Pressure Sensor (3 Way)

G04764031

Courtesy of DAIMLERCHRYSLER CORPORATION
