Service Information: Description

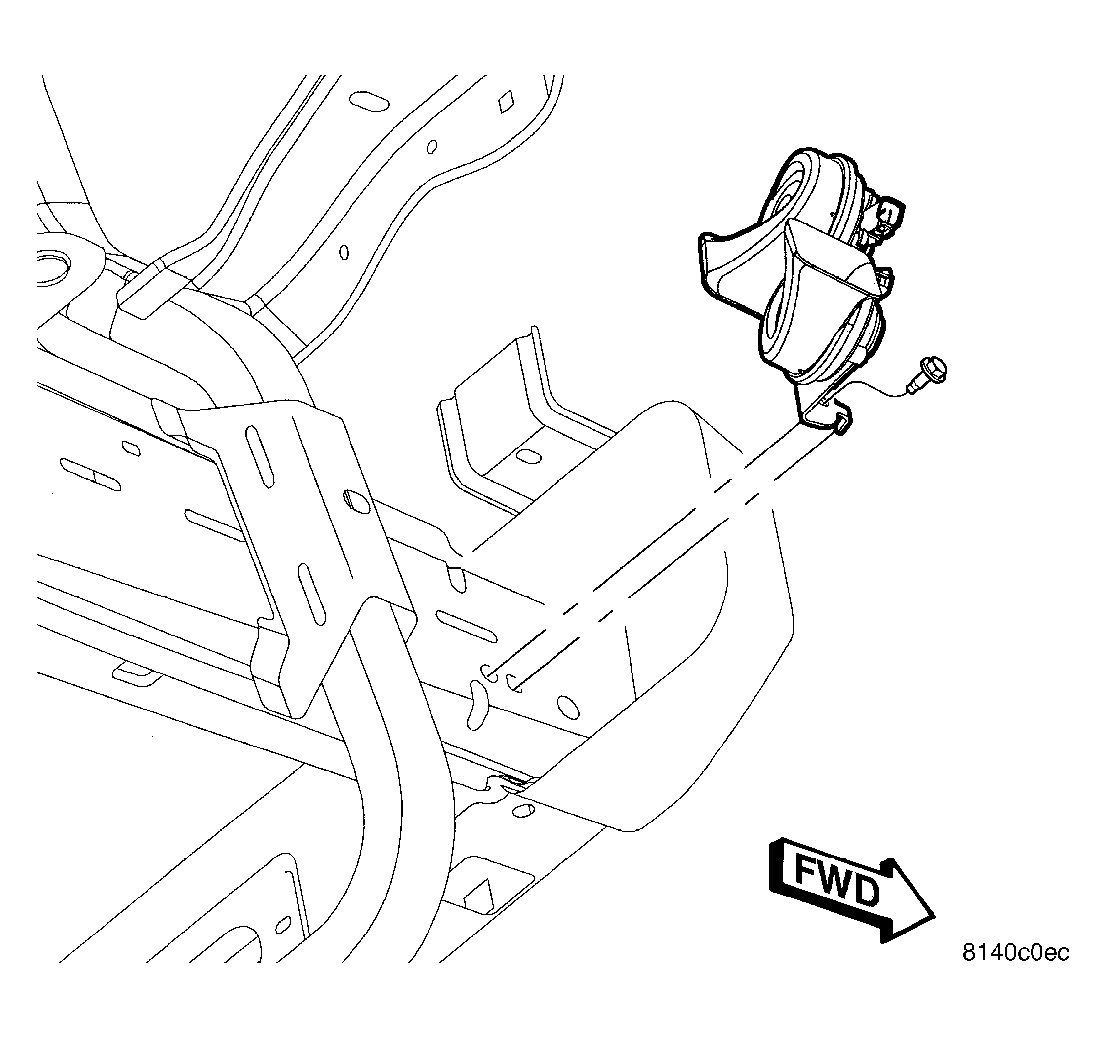

Fig 1: Locating Horn System Components

Courtesy of DAIMLERCHRYSLER CORP.

The dual-note horn system features dual electromagnetic horn units. The horn system includes the following major components:

• Horn  - The two horns are located on the right side of the vehicle behind the fascia.
• Horn Switch  - The horn switch is located in the driver airbag trim cover.
