Left Seat Back Heater Connector End View
Left Seat Back Heater Connector End View

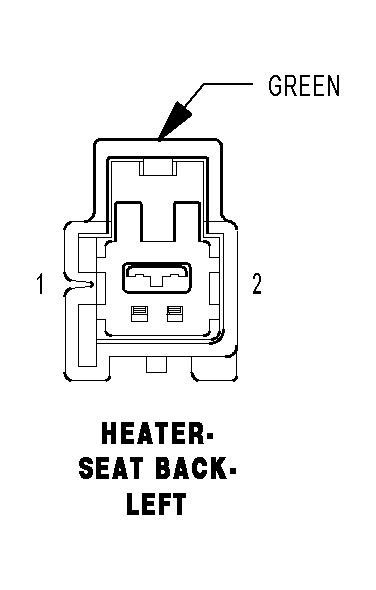

HEATER-SEAT BACK-LEFT - GREEN 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
P187 16LG/BR
LEFT SEAT HEATER B(+) DRIVER
2
Z911 16BK
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
