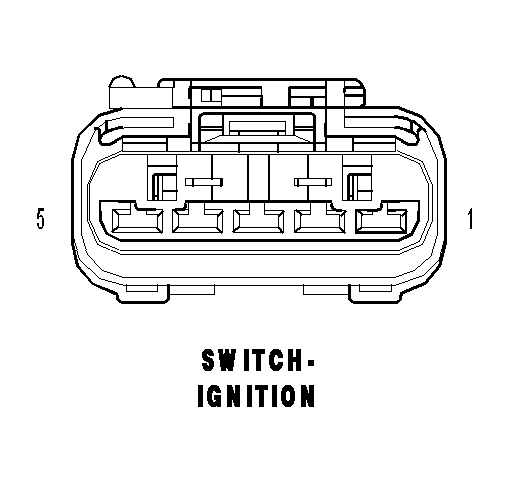

Ignition Switch Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-IGNITION - 5 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G900 20VT/OR |
IGNITION SWITCH SENSE RETURN |
| 2 |
G20 20VT/BR |
IGNITION SWITCH SENSE |
| 3 |
F944 16PK/LG |
IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
F26 16PK/OR |
FUSED IGNITION SWITCH OUTPUT (START) |
| 5 |
A106 16LB/RD |
FUSED B(+) |
