Dynamic Handling System Pressure Sensor Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

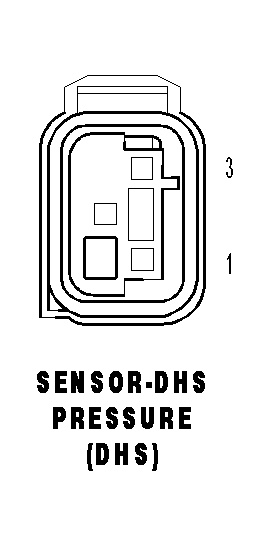

SENSOR-DHS PRESSURE (DHS) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	S950 20GY/TN	DHS SENSOR RETURN
2	S60 20GY/YL	DHS PRESSURE SENSOR SIGNAL
3	S50 20GY/WT	DHS 5 VOLT SUPPLY
