Dynamic Handling System Pressure Control Solenoid Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

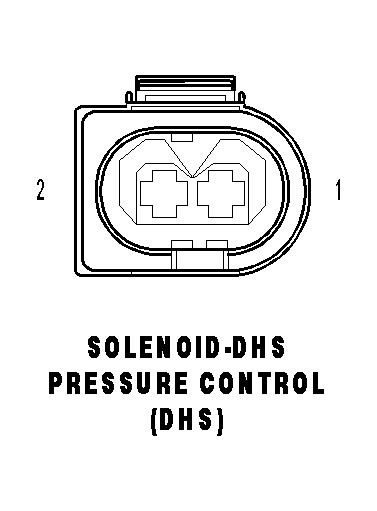

SOLENOID-DHS PRESSURE CONTROL (DHS) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	S80 20GY/LB	DIRECTIONAL SOLENOID SUPPLY
2	S61 20GY/DG	DHS PRESSURE SOLENOID CONTROL
