Connector C205 Connector End View

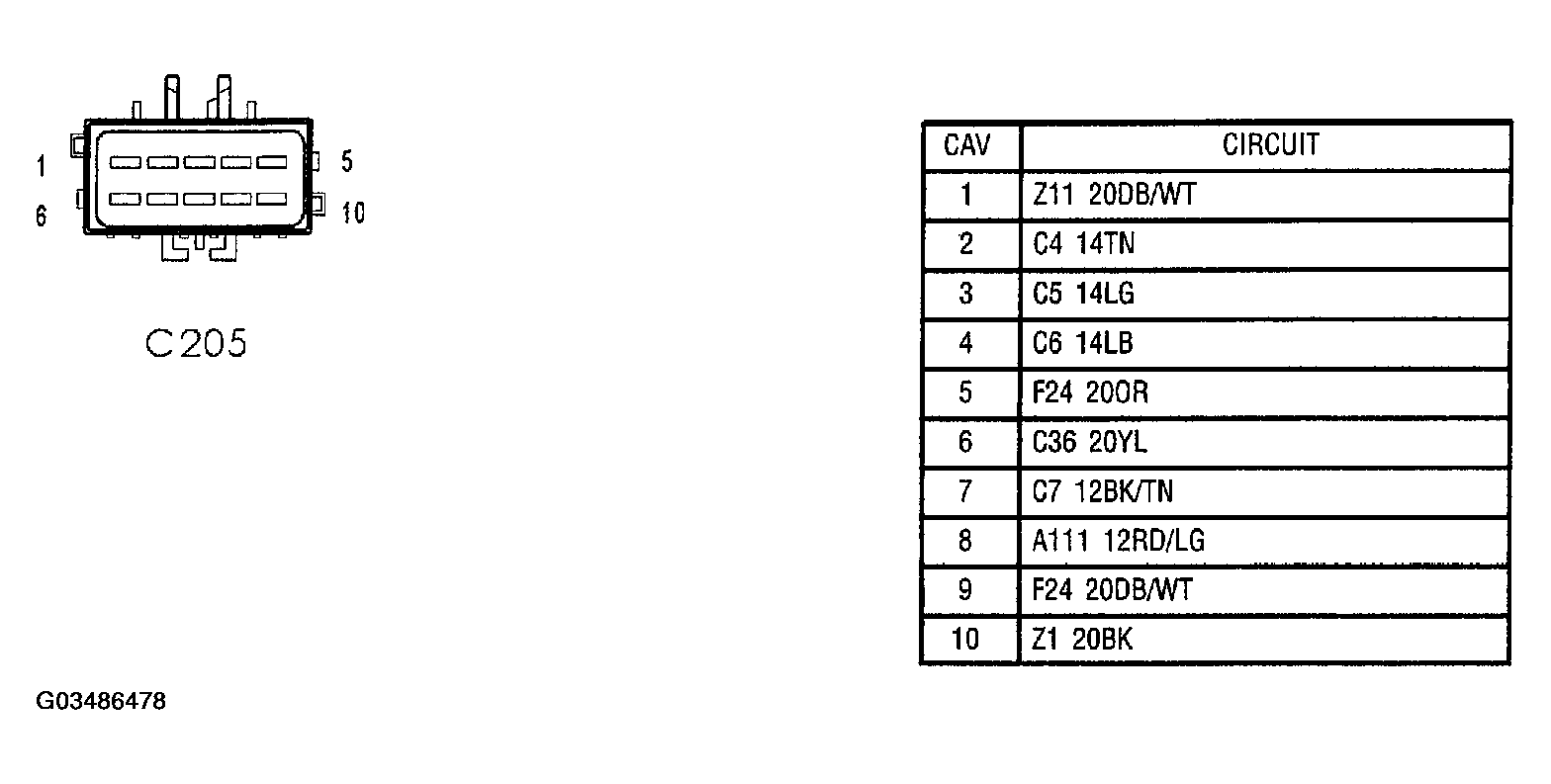

Fig 1: HVAC Side Inline Connector End View (C205)
G03486478Courtesy of DAIMLERCHRYSLER CORP.

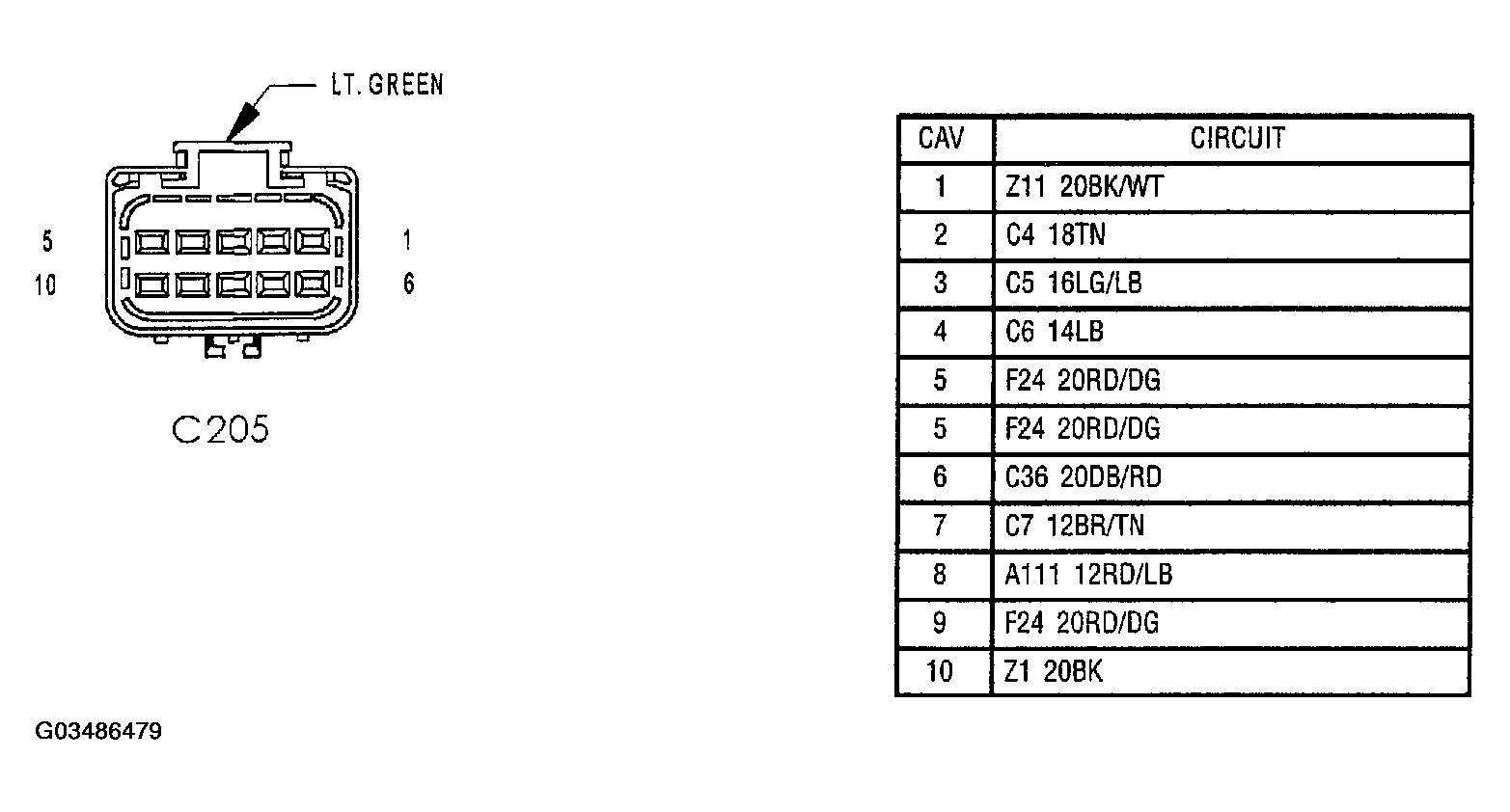

Fig 1: Instrument Panel Side Inline Connector End View (C205)
G03486479Courtesy of DAIMLERCHRYSLER CORP.
