Connector C325 Connector End View

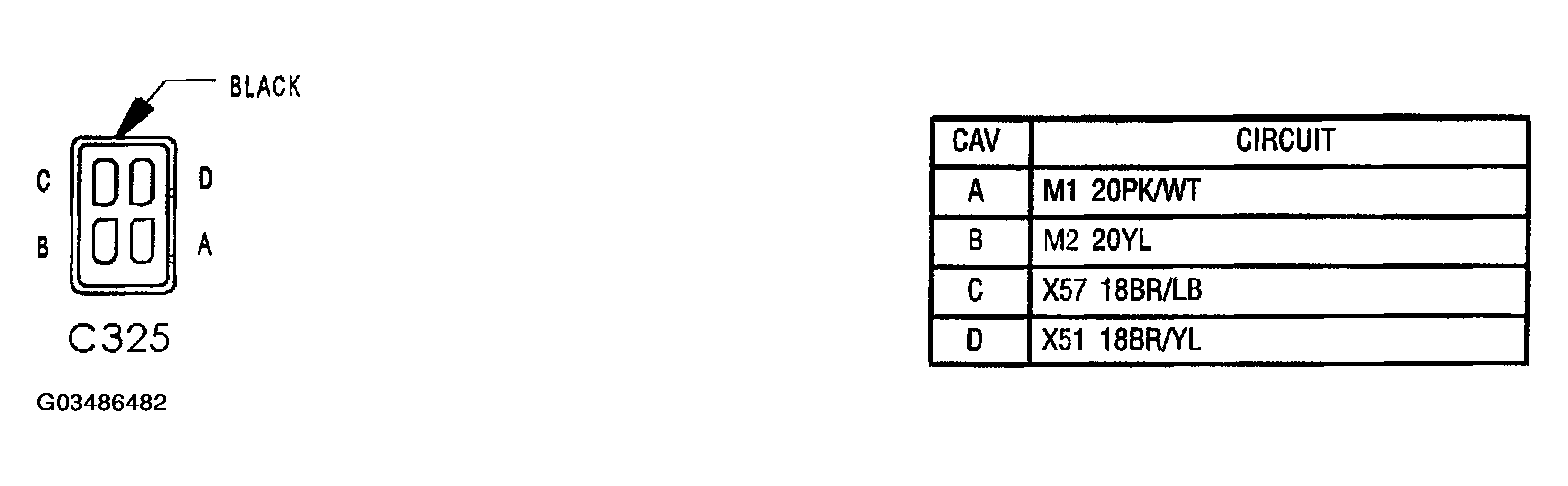

Fig 1: Speaker Pod Jumper Inline Connector End View (C325)
G03486482Courtesy of DAIMLERCHRYSLER CORP.

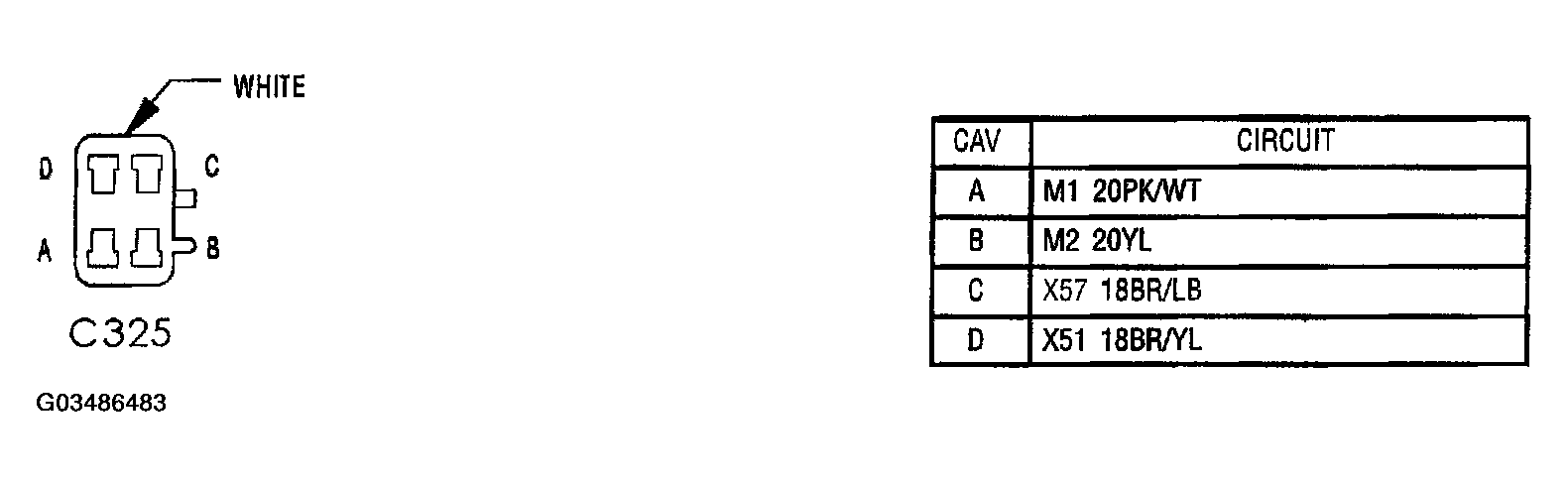

Fig 1: Body Side Inline Connector End View (C325)
G03486483Courtesy of DAIMLERCHRYSLER CORP.
