Body Control Module C1 - Gray 26 Way Connector End View

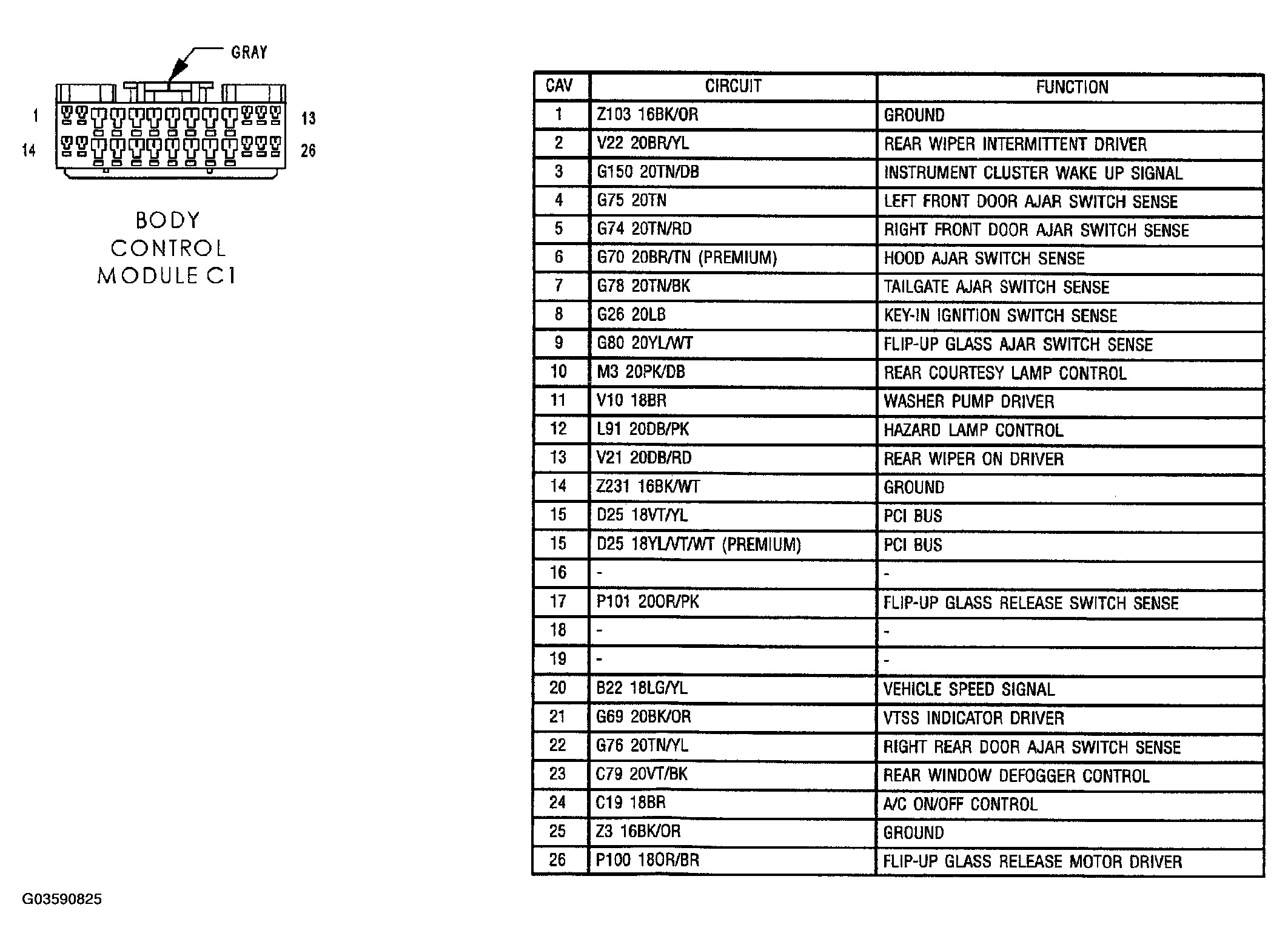

Fig 1: Body Control Module Connector End View (C1)
G03590825Courtesy of DAIMLERCHRYSLER CORP.
