Multi-Function Switch C1 - Gray 10 Way Connector End View

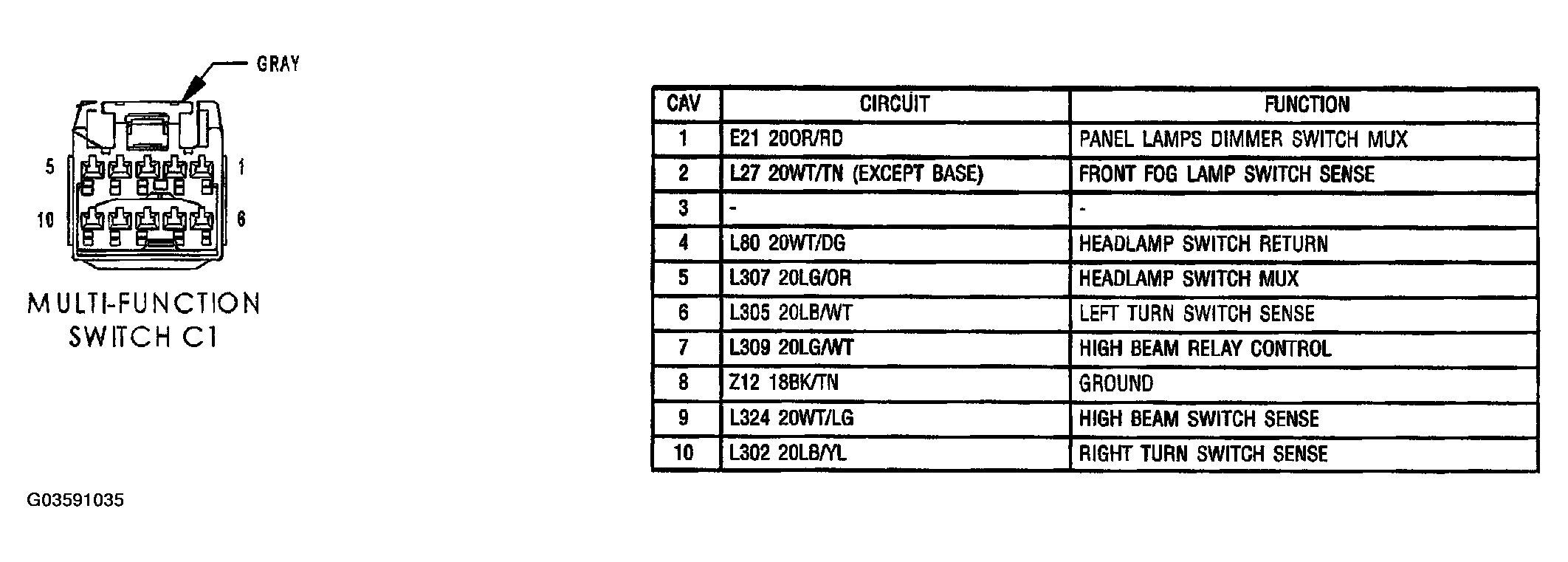

Fig 1: Multifunction Switch Connector End View (C1)

G03591035

Courtesy of DAIMLERCHRYSLER CORP.
