Torque Specifications
Torque Specifications

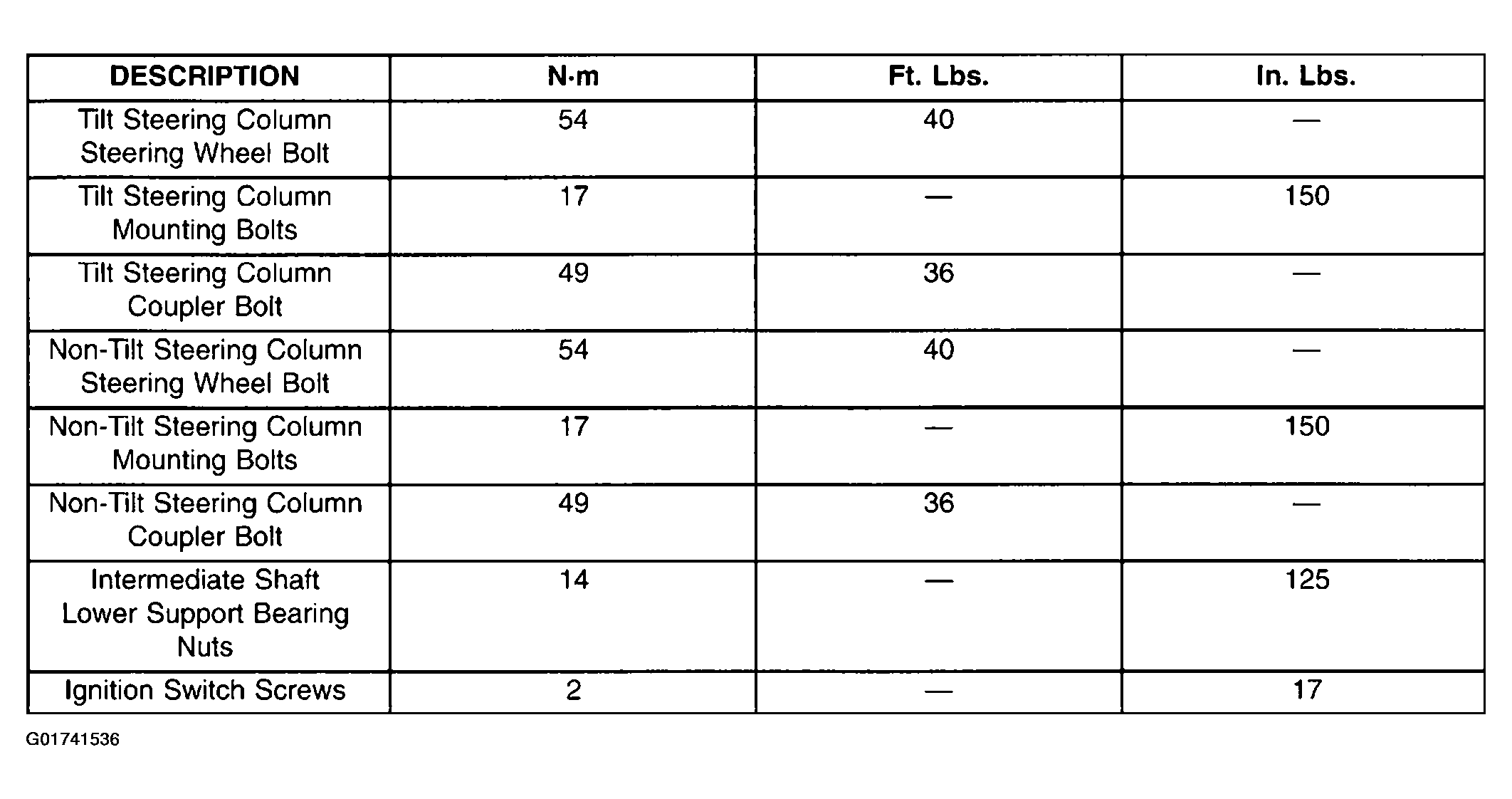

Fig 1: Steering Column Torque Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
